Fiber Splitters
Cleerline™ Fiber Optic Splitters are planar lightwave circuit (PLC) optical power management devices fabricated using silica optical waveguide technology to distribute optical signals from a Central Office (CO) to multiple premise locations. Their small size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity make them a low-cost solution for optical signal power splitting in PON networks.

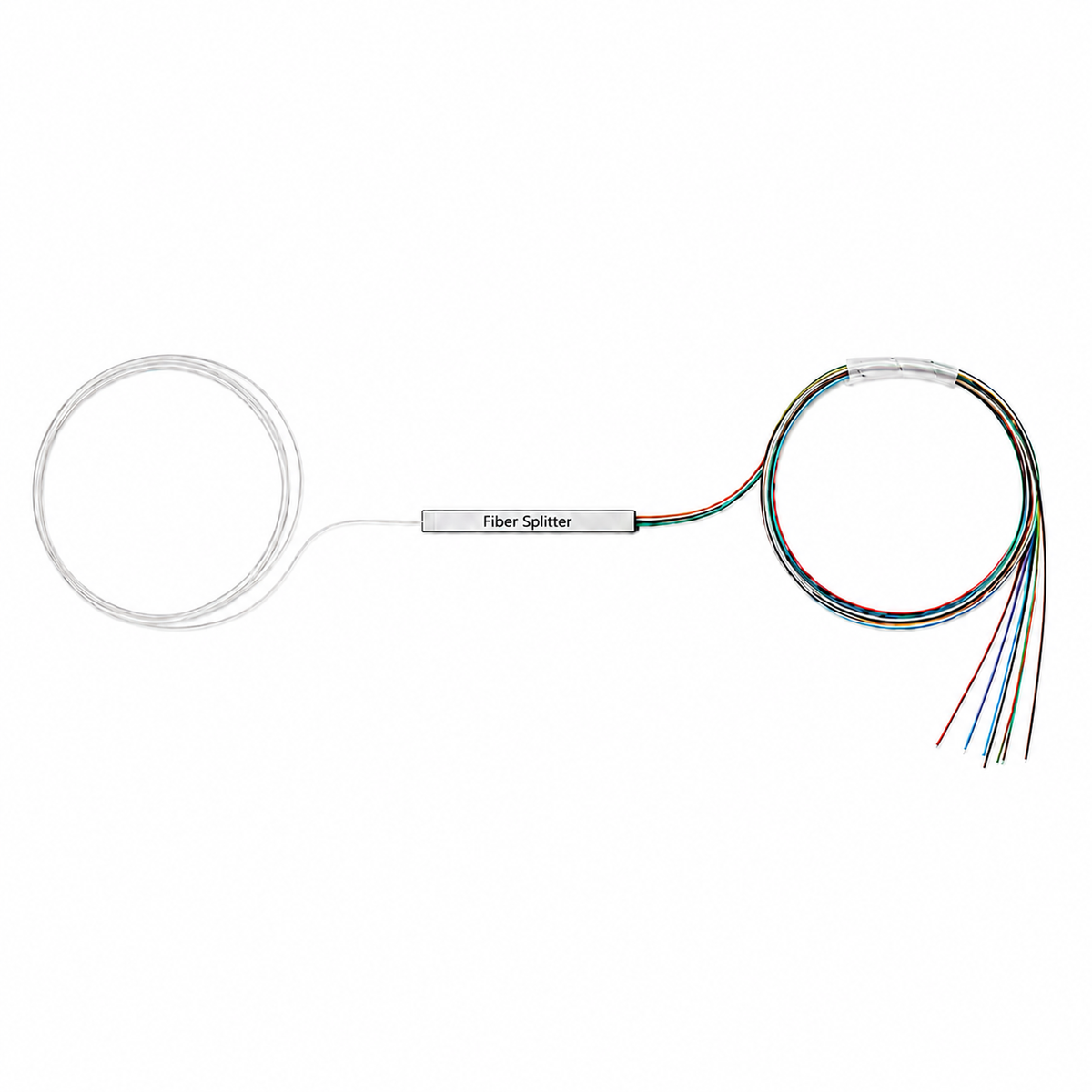

Available in 1x2, 1x4, 1x8, 1x16, and 1x32 configurations in a mini module package with 250 µm bare fiber pigtails, singlemode, operating at 1310 and 1550 nm.
Features and Benefits
• Low insertion loss
• Low PDL (Polarization Dependent Loss)
• Compact design
• Fully passive optical branching device
Applications
• FTTX systems
• LAN, WAN, and Metro networks
• Analog/Digital passive optical networks
• CATV networks
Optical Specifications
• PDL: ≤ 0.3 dB
• Directivity: ≥ 55 dB
• Return Loss: ≥ 55 dB
• Wavelength: 1310 & 1550 nm
• Operating Temperature: -40 °C to +85 °C
Available in 1x2, 1x4, 1x8, 1x16, and 1x32 configurations in a mini module package with 250 µm bare fiber pigtails, singlemode, operating at 1310 and 1550 nm.
Features and Benefits
• Low insertion loss
• Low PDL (Polarization Dependent Loss)
• Compact design
• Fully passive optical branching device
Applications
• FTTX systems
• LAN, WAN, and Metro networks
• Analog/Digital passive optical networks
• CATV networks
Optical Specifications
• PDL: ≤ 0.3 dB
• Directivity: ≥ 55 dB
• Return Loss: ≥ 55 dB
• Wavelength: 1310 & 1550 nm
• Operating Temperature: -40 °C to +85 °C
Specification Sheet
