BendSafe® Armored Direct Burial Distribution Cable
Details

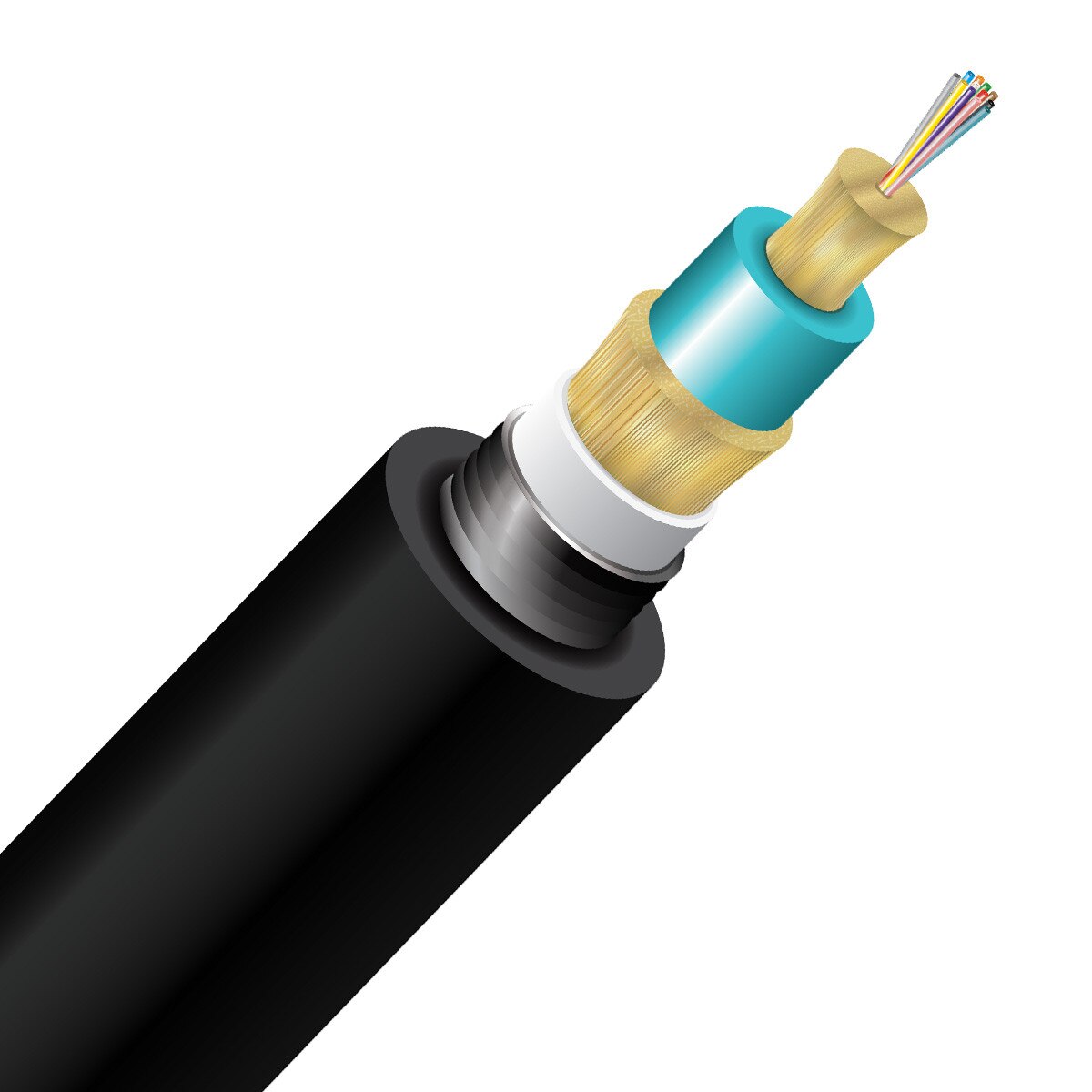

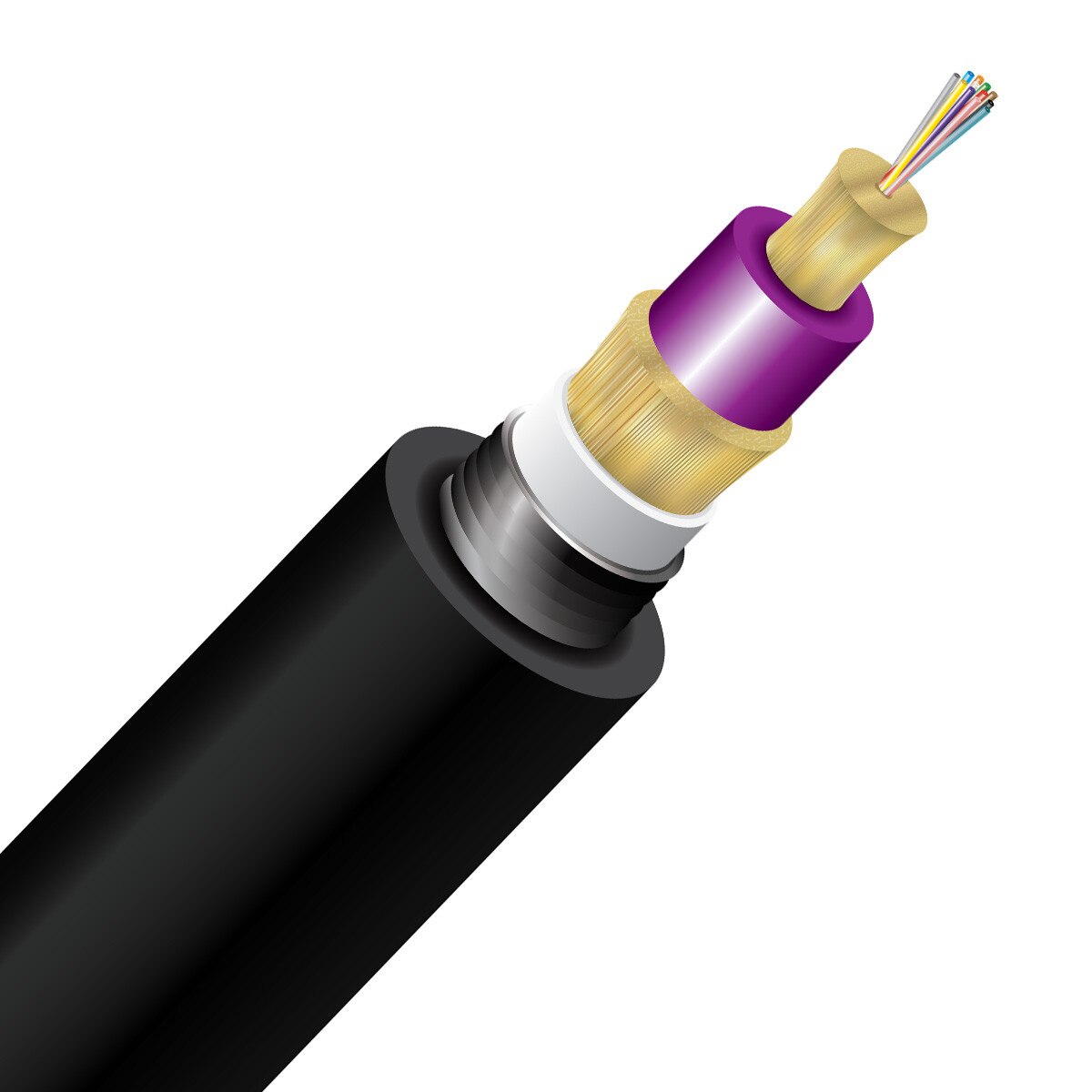

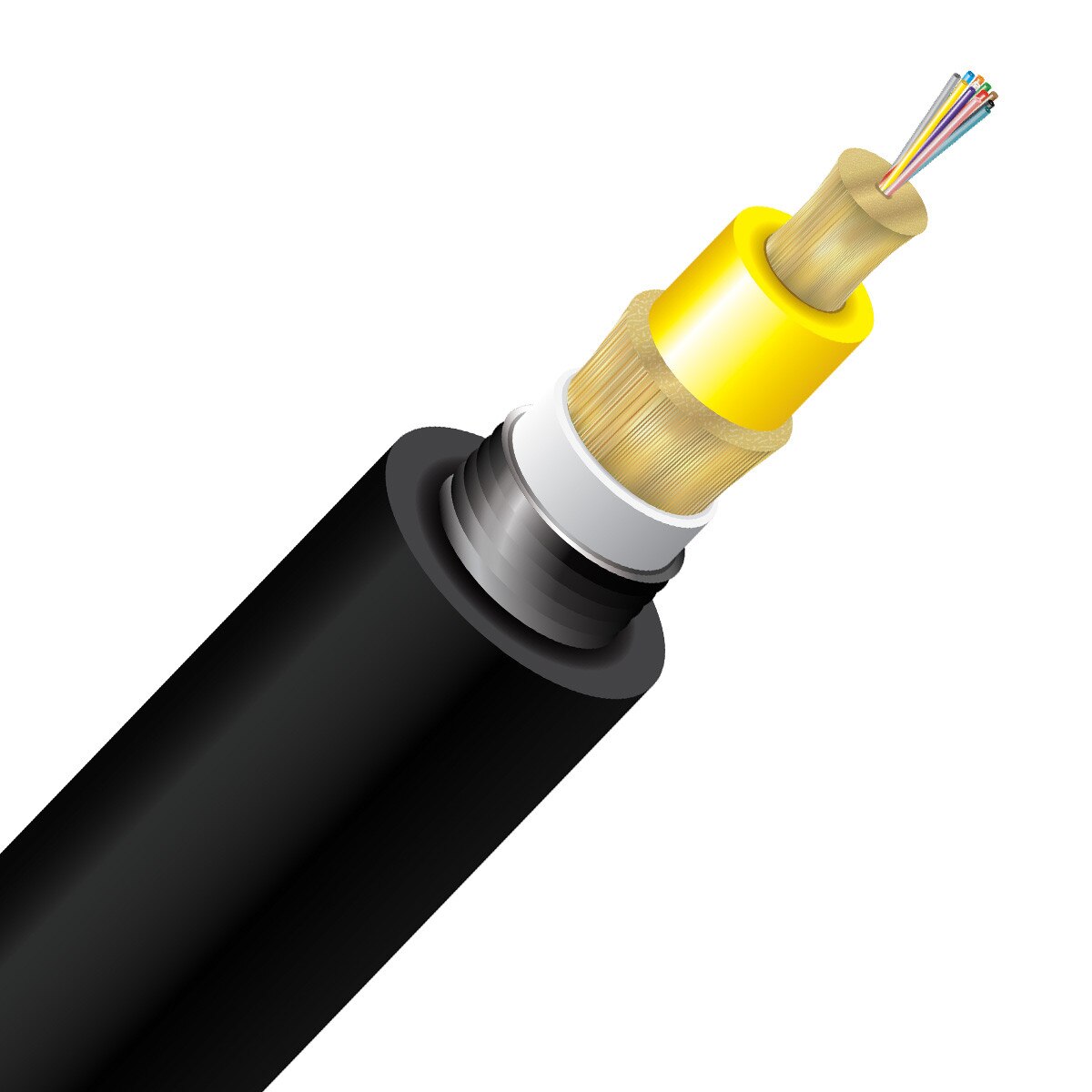

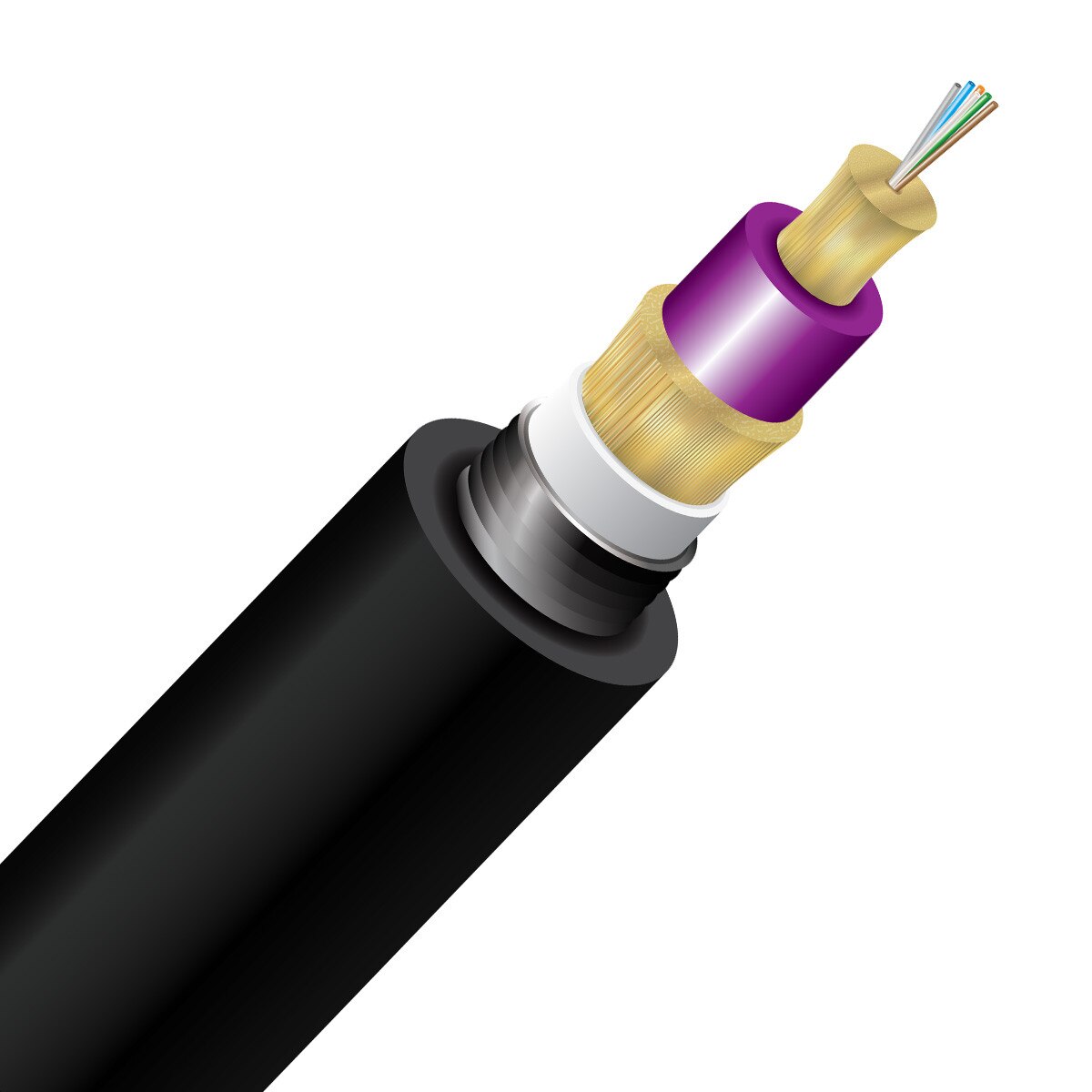

Cleerline BendSafe® Armored Direct Burial Distribution cable consists of a PE overall jacket with 6 or 12 fibers and water blocking aramid yarns.
The core is protected by a corrugated armored steel tube that offers easy installation and high crush resistance. A polyethylene, UV-resistant jacket protects the cable, allowing direct burial.
Cleerline BendSafe® Armored multimode and single-mode is fully compatible with all common connector systems for standard 50/125 multimode and 9/125 single-mode fiber.
This product offers bend performance beyond EIA SP-2840A, as well as superior crush resistance and superior pull.
FEATURES AND BENEFITS
- BendSafe® Dynamic Fatigue rating (Nd = 27)
- High mechanical strength
- BendSafe® 900 μm tight buffered fibers
- Manufactured to exact tolerances and specifications
- Ultra low attenuation on tight bend radius
