Fan Out/Breakout Kits

Cleerline SSF™ Fan Out or Breakout Kits enable fast and easy build-up of 250 µm fibers found in today’s common micro distribution style cables. The kit’s color-coded buffer tubes allow the cable’s overall jacket to be removed and each 250 µm fiber to simply be threaded through the corresponding-colored tube. To complete, the assembly snaps together and requires no additional tooling or epoxy.

Using a Fan Out or Breakout kit provides additional protection to 250 µm fibers where installation of an enclosure or terminal box is not possible.

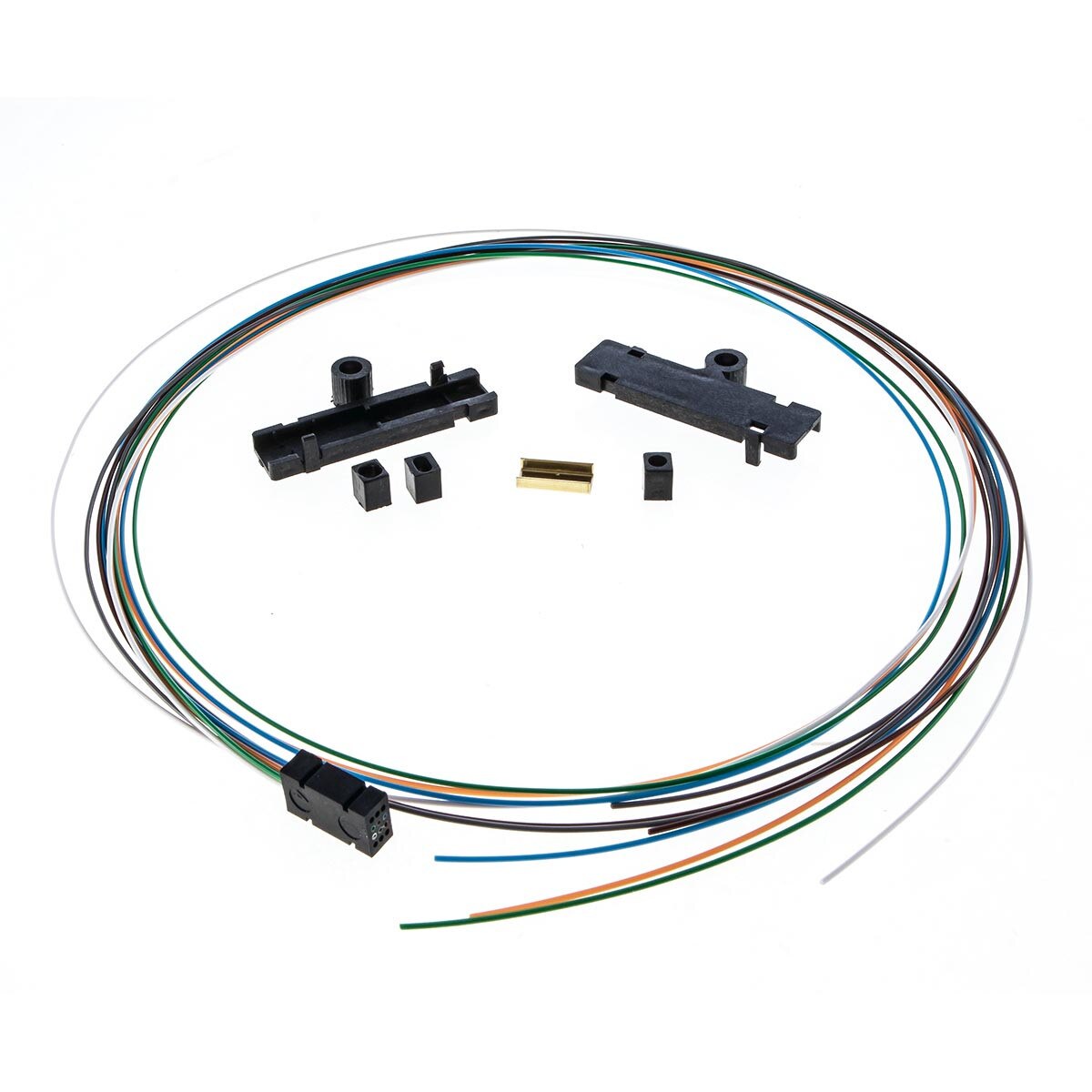

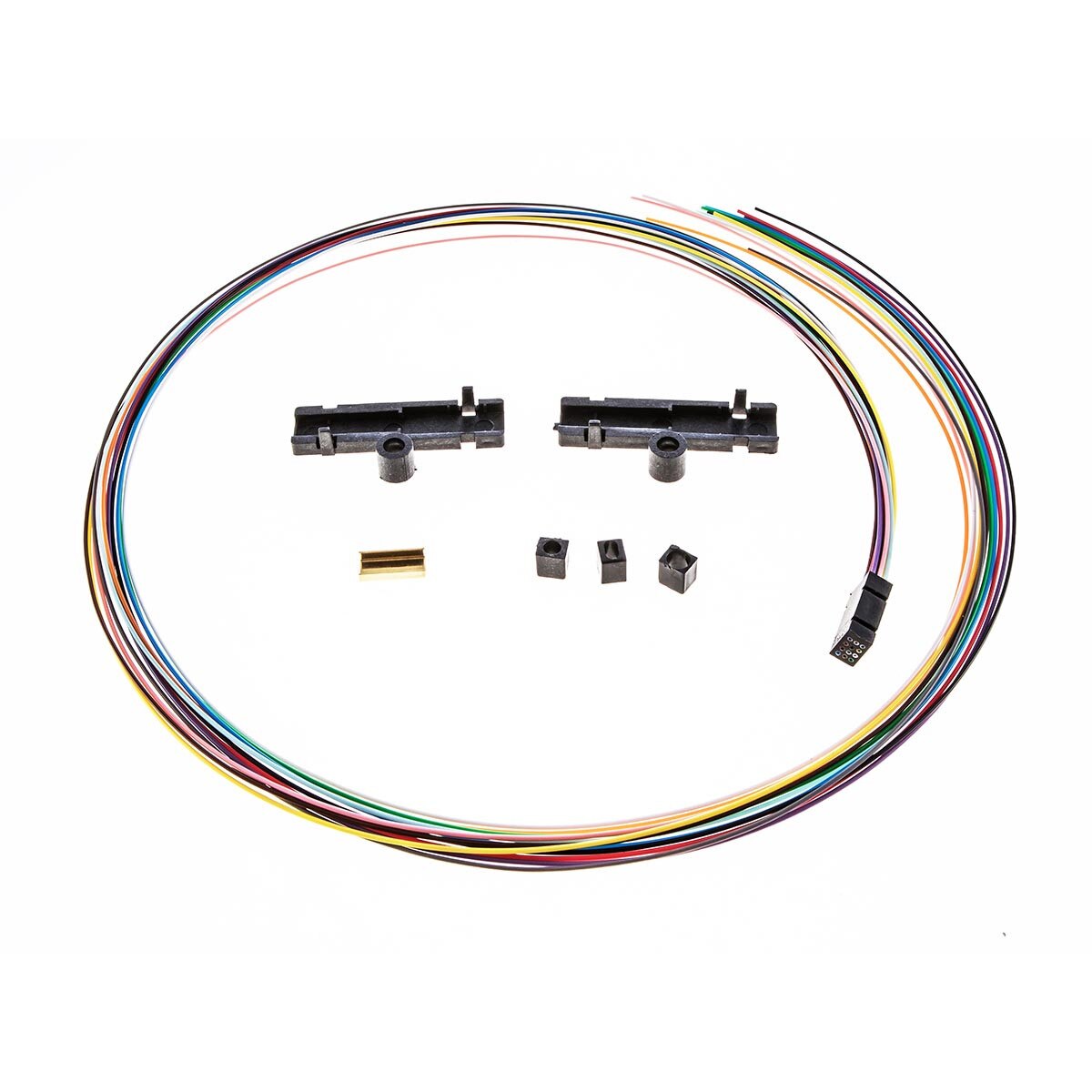

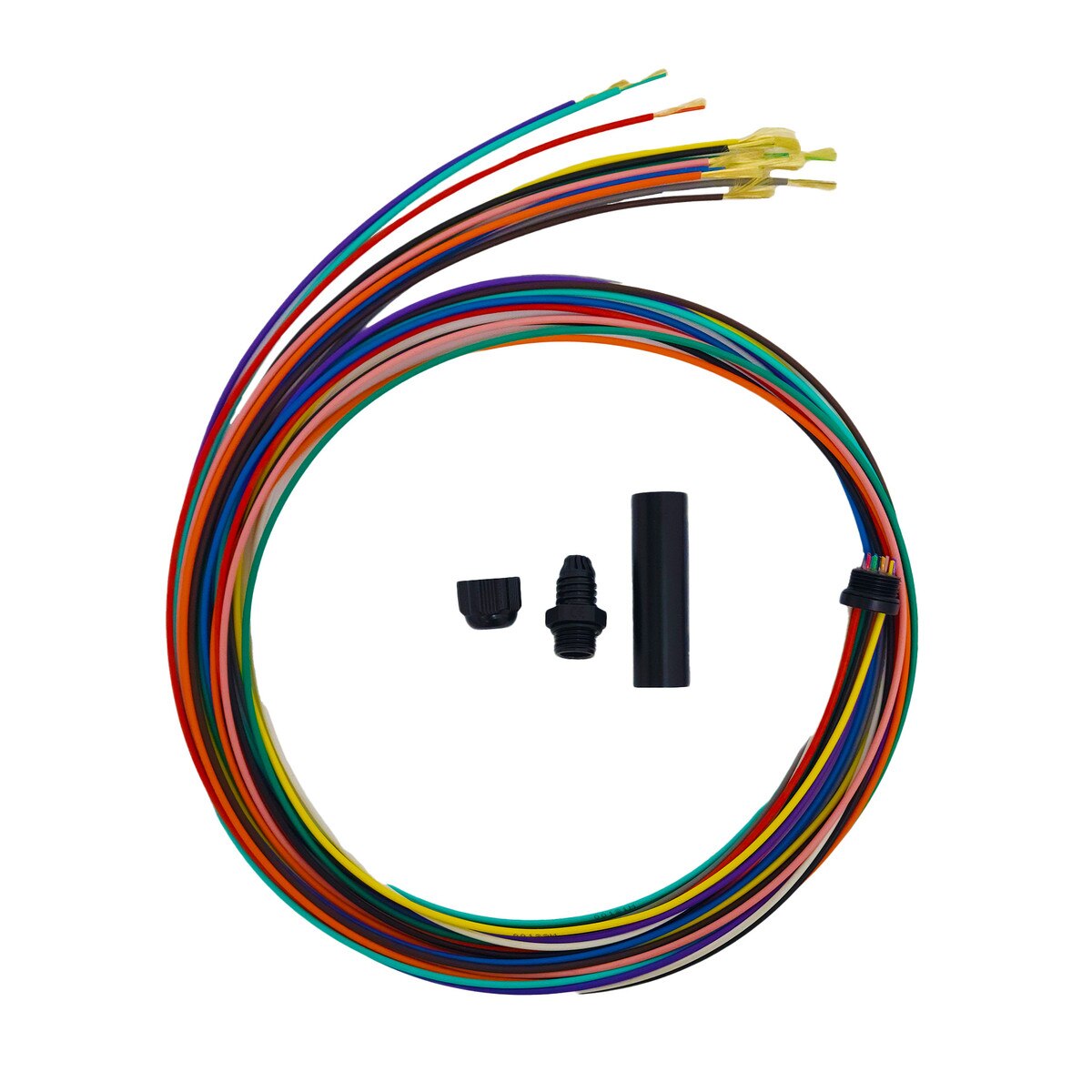

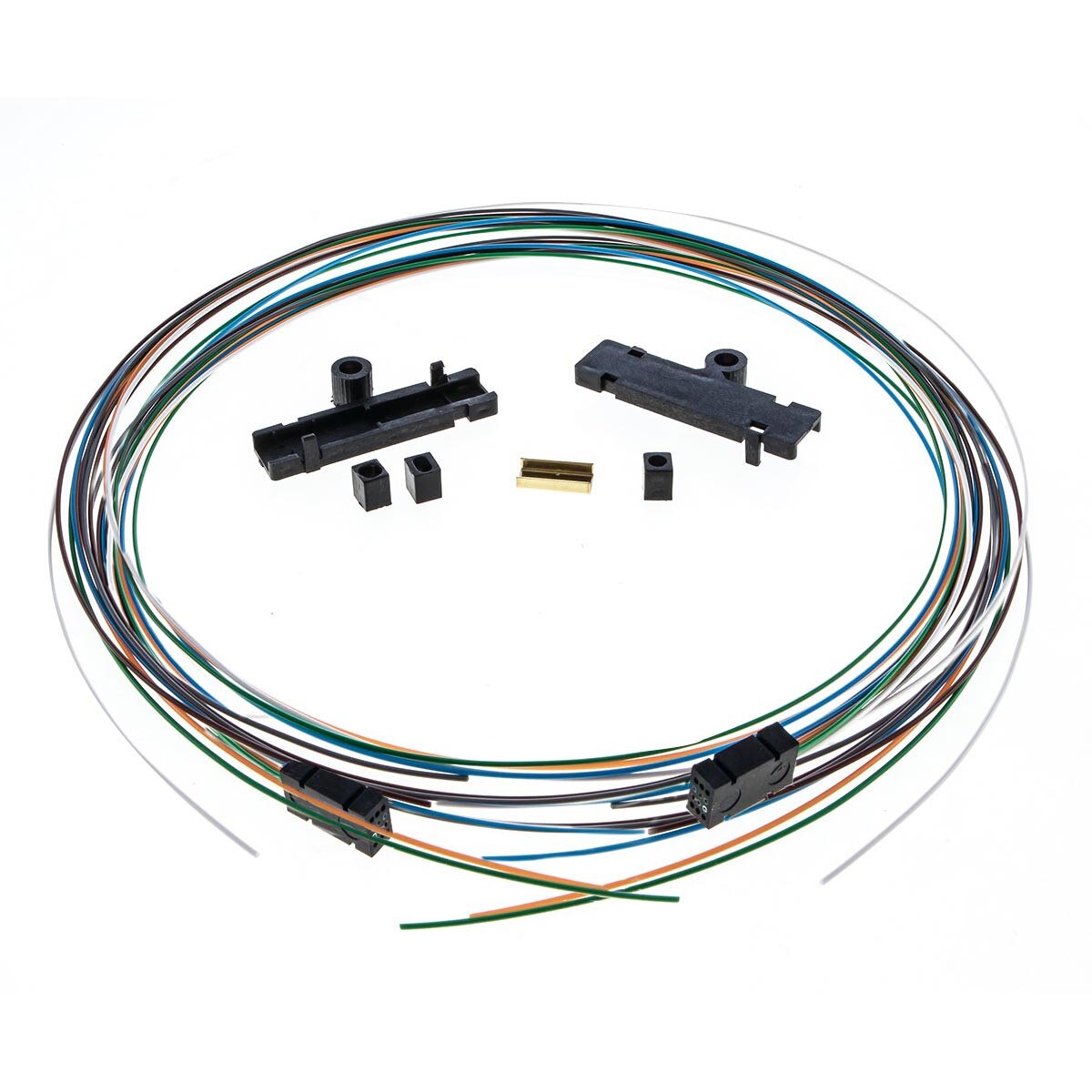

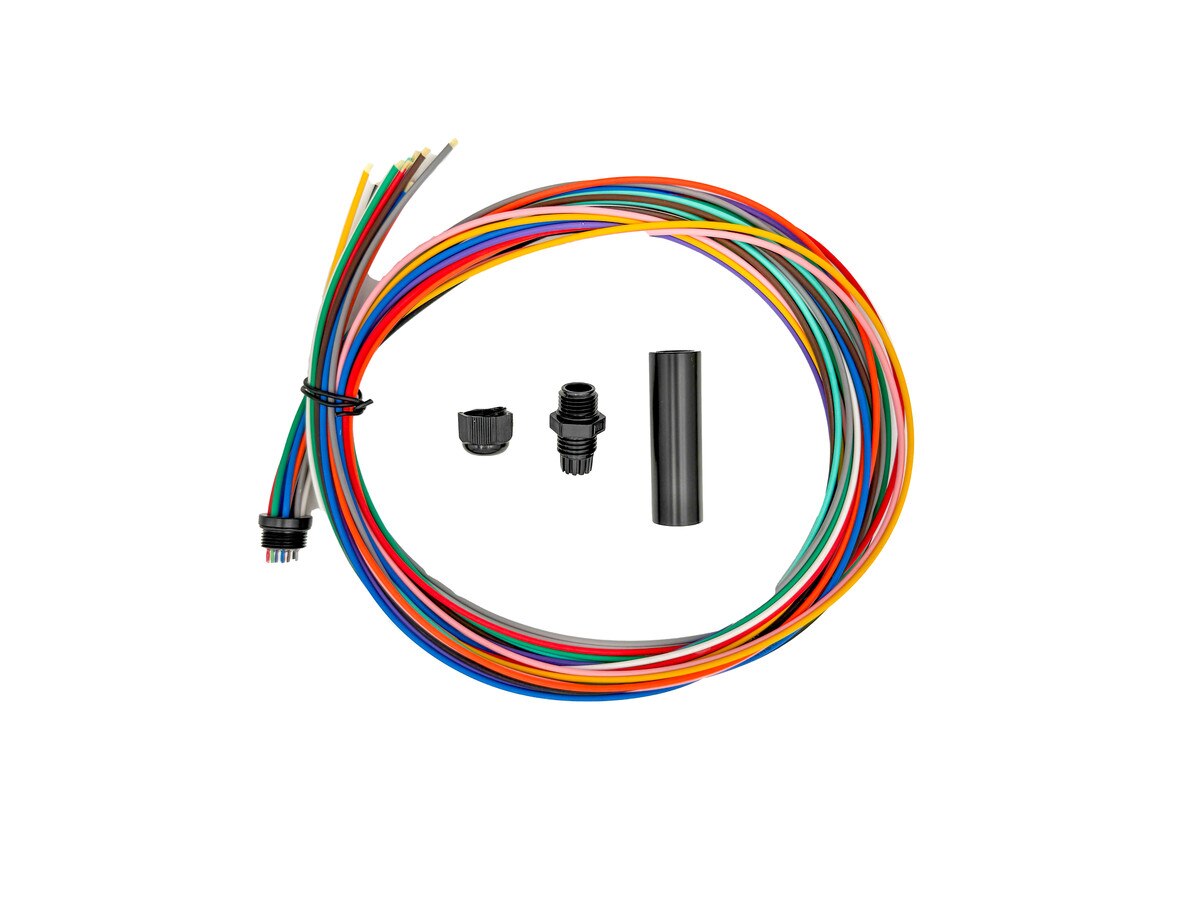

Loose tube fanout kits are available in 4, 6, 12, and 24 strand configurations and in two different lengths. Breakout kits are available in 6 and 12 strand configurations and in two different lengths. These kits work with all 250 µm type single-mode or multimode cabling and industry standard connectors.

FEATURES AND BENEFITS

• Two different lengths available
• Tubing colored per TIA/EIA-569-B standard
• Provides protection to any installation
• Easy to assemble
