Fiber Media Extenders-Rugged

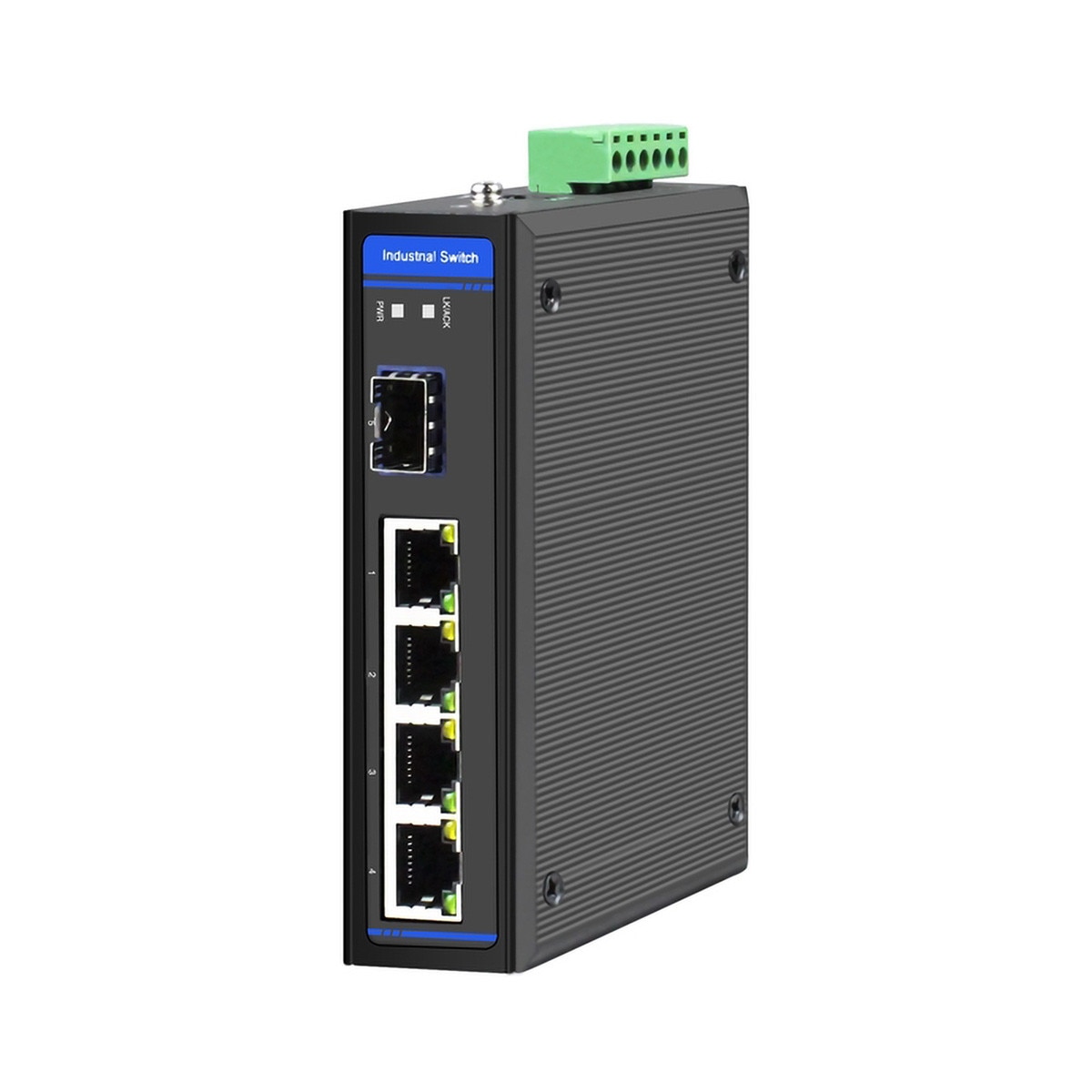

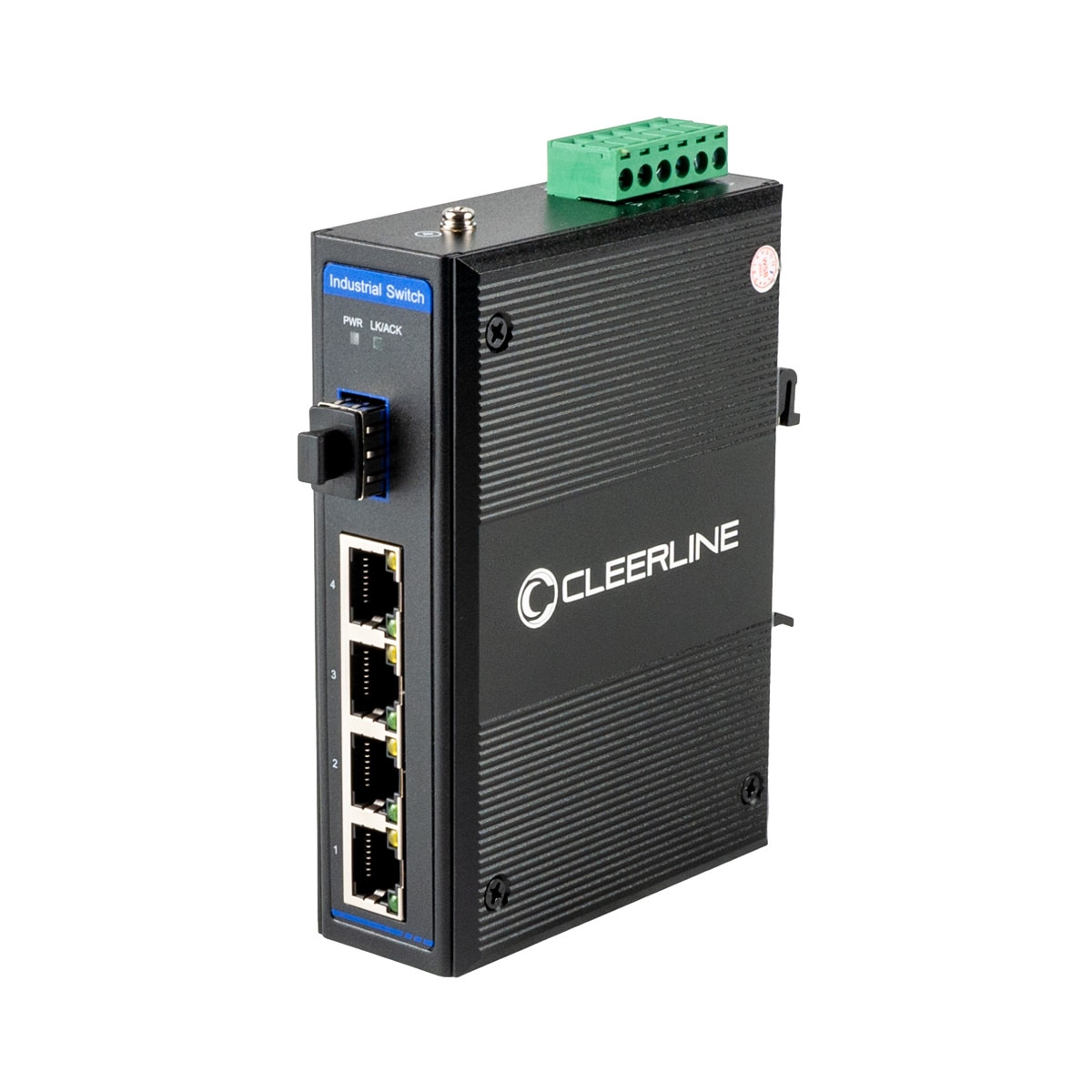

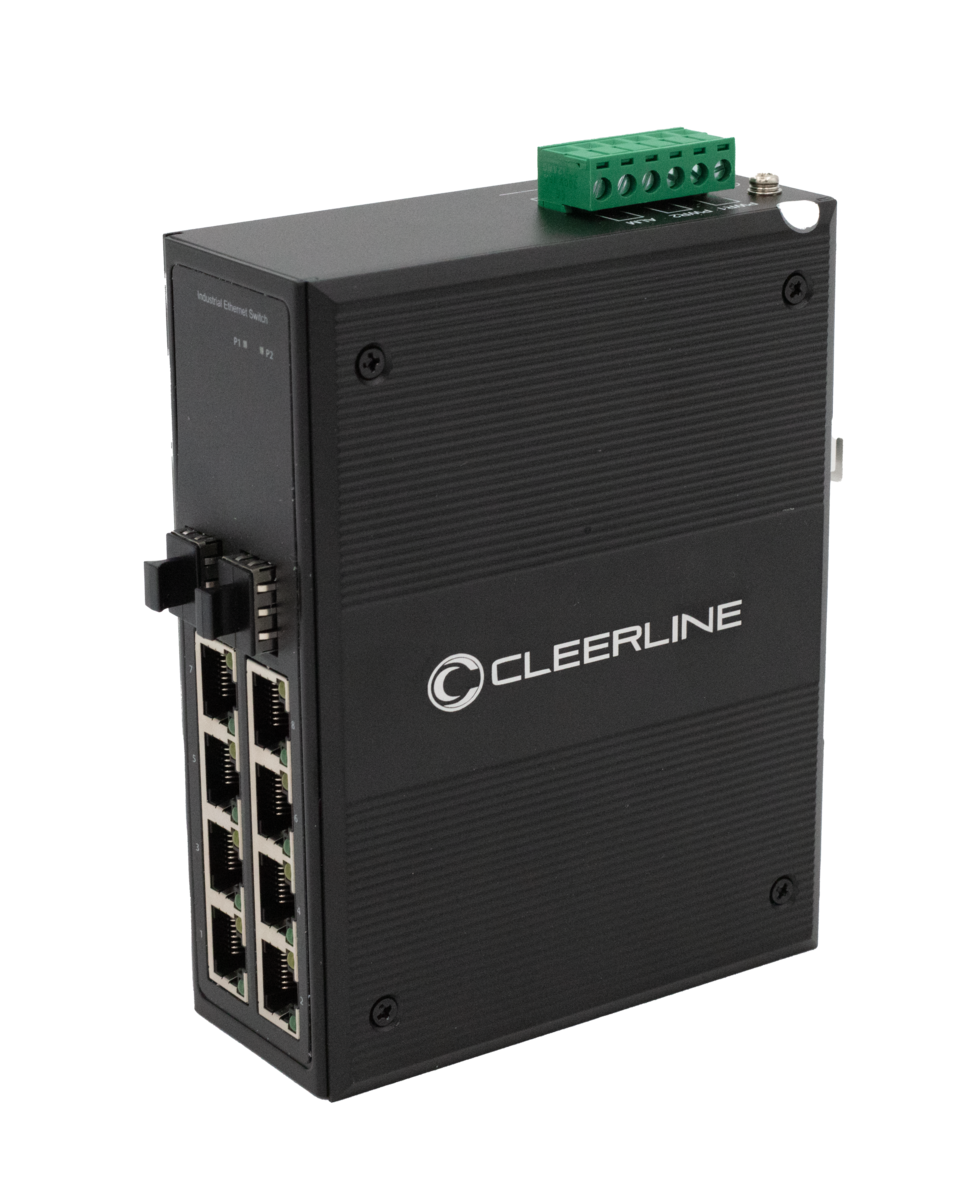

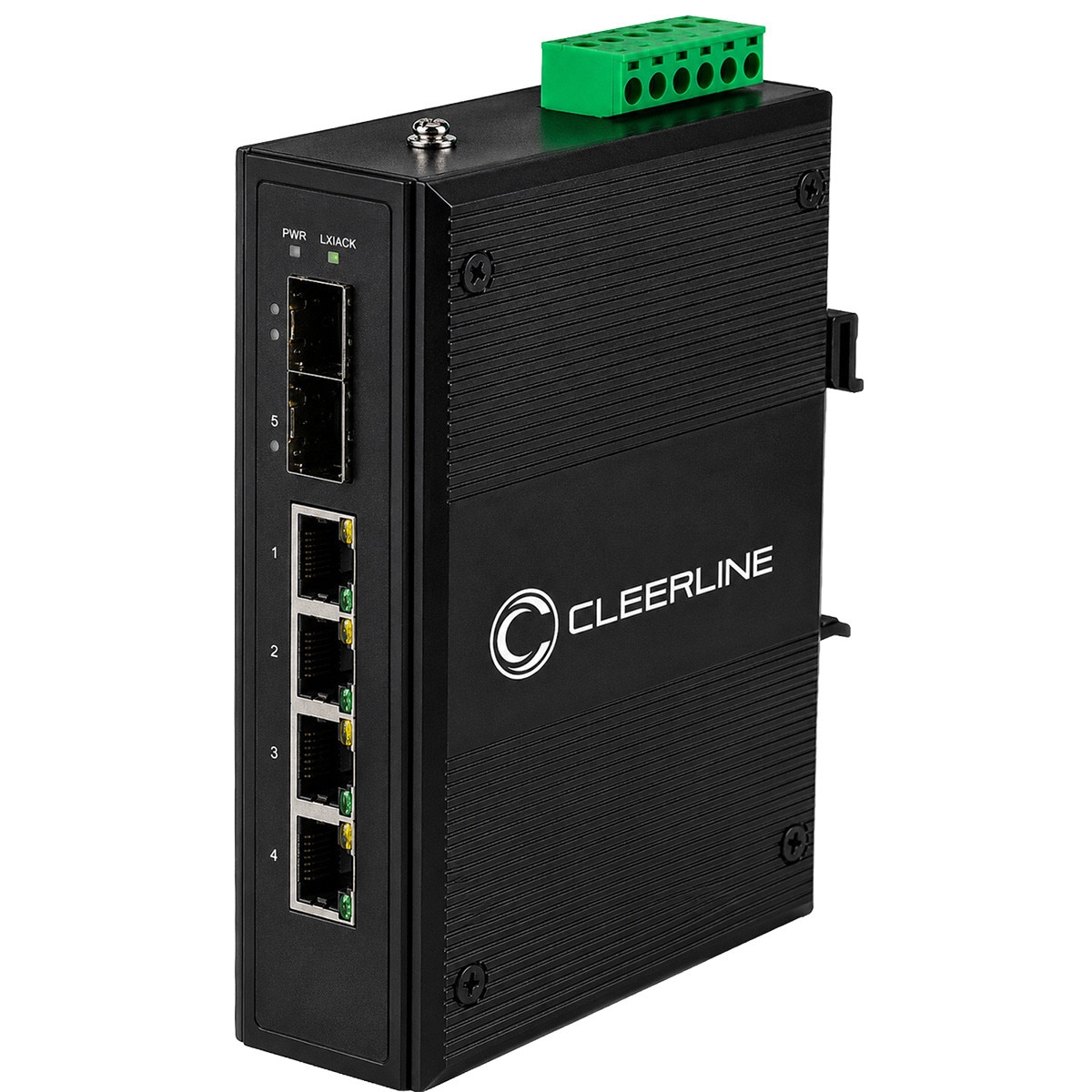

Gigabit Ethernet 10/100/1000Base-TX to 1000Base-X non-managed Industrial Ethernet Switch. It is designed with a hardened case for use in extreme operating temperatures (-40 to +75°C). The rugged metal housing is IP40 rated and intended to withstand mechanically or electrically extreme environments.

This industrial switch features strong surge protection (4kV ~ 8KV) per port and is compliant with IEC and EN standards for industrial grade equipment.

Requires DIN power supply

FEATURES AND BENEFITS:
• DC power input block 48-52V
• Extreme operating temperature: -40 to 75°C
• Rugged IP40 rated metal casing, DIN rail bracket
• Store and Forward switching mechanism
• Reversed power polarity protection
• Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
• Supports 6kV surge protection per port on all TP ports for PoE models
• Supports IEEE 802.1Q Tag VLAN pass thru
• Redundant DC power inputs on every model
