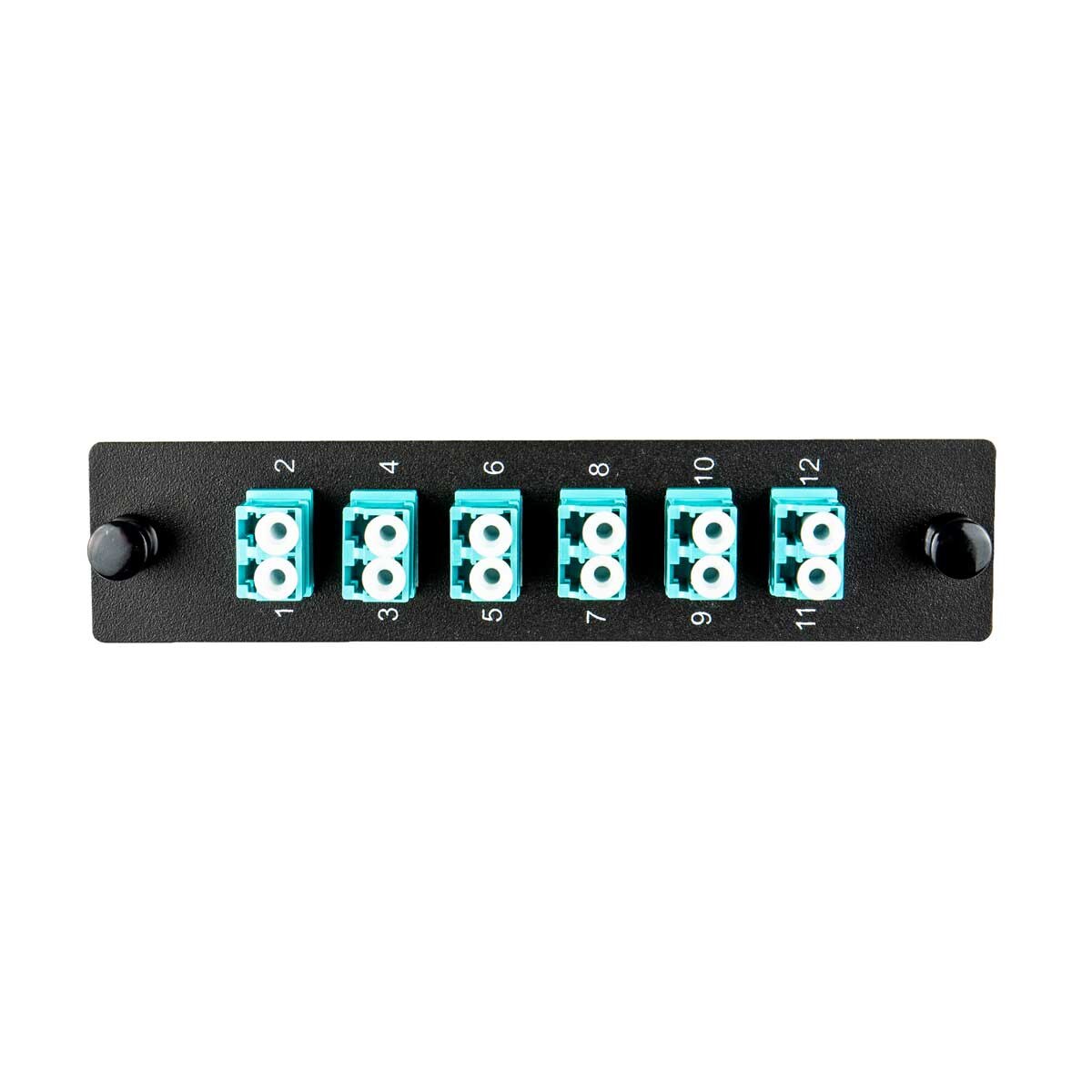

• Adapter Plate, 12 Fiber, Duplex, LC/UPC, 50 µm OM3-4, Aqua

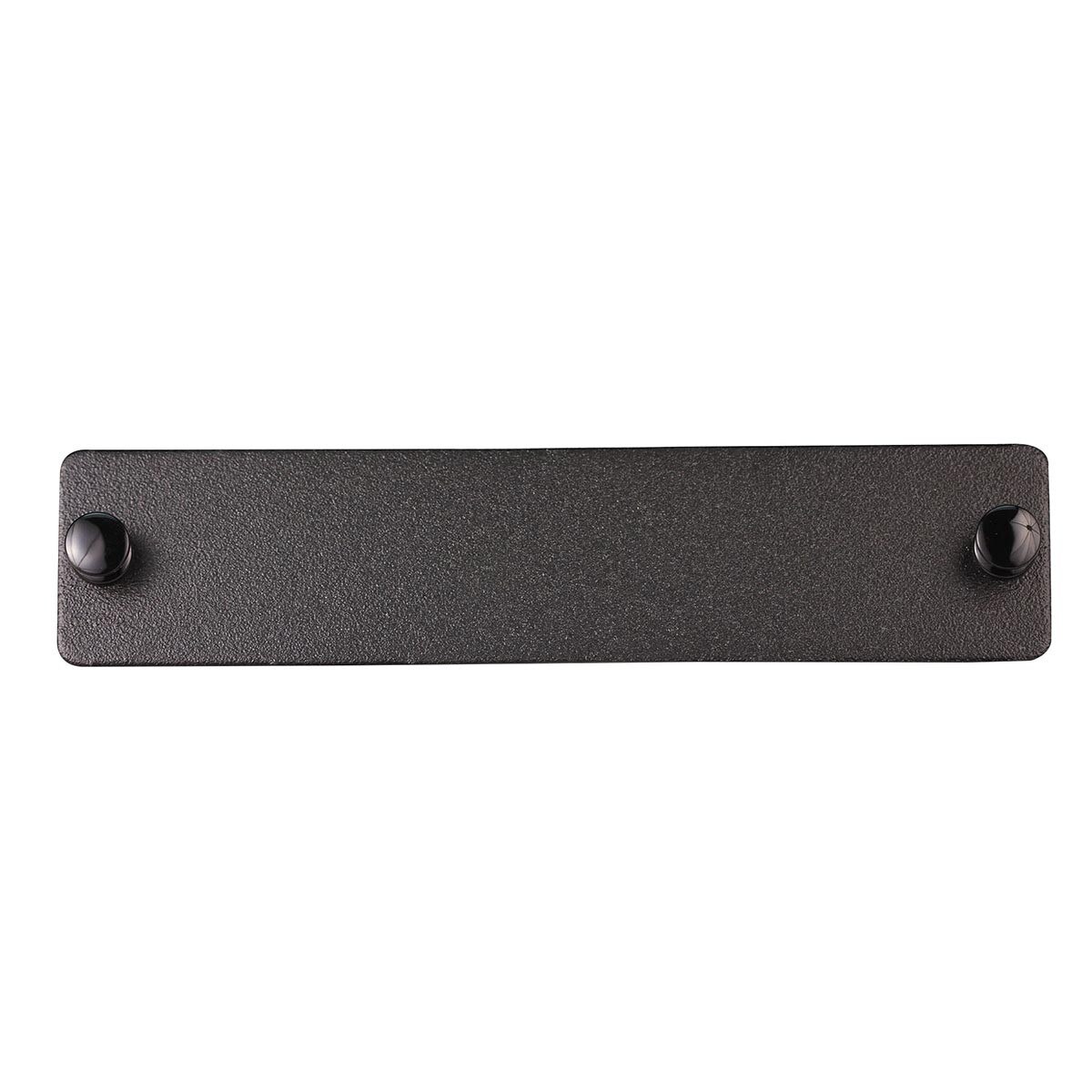

  • Adapter Plate, Blank, Black

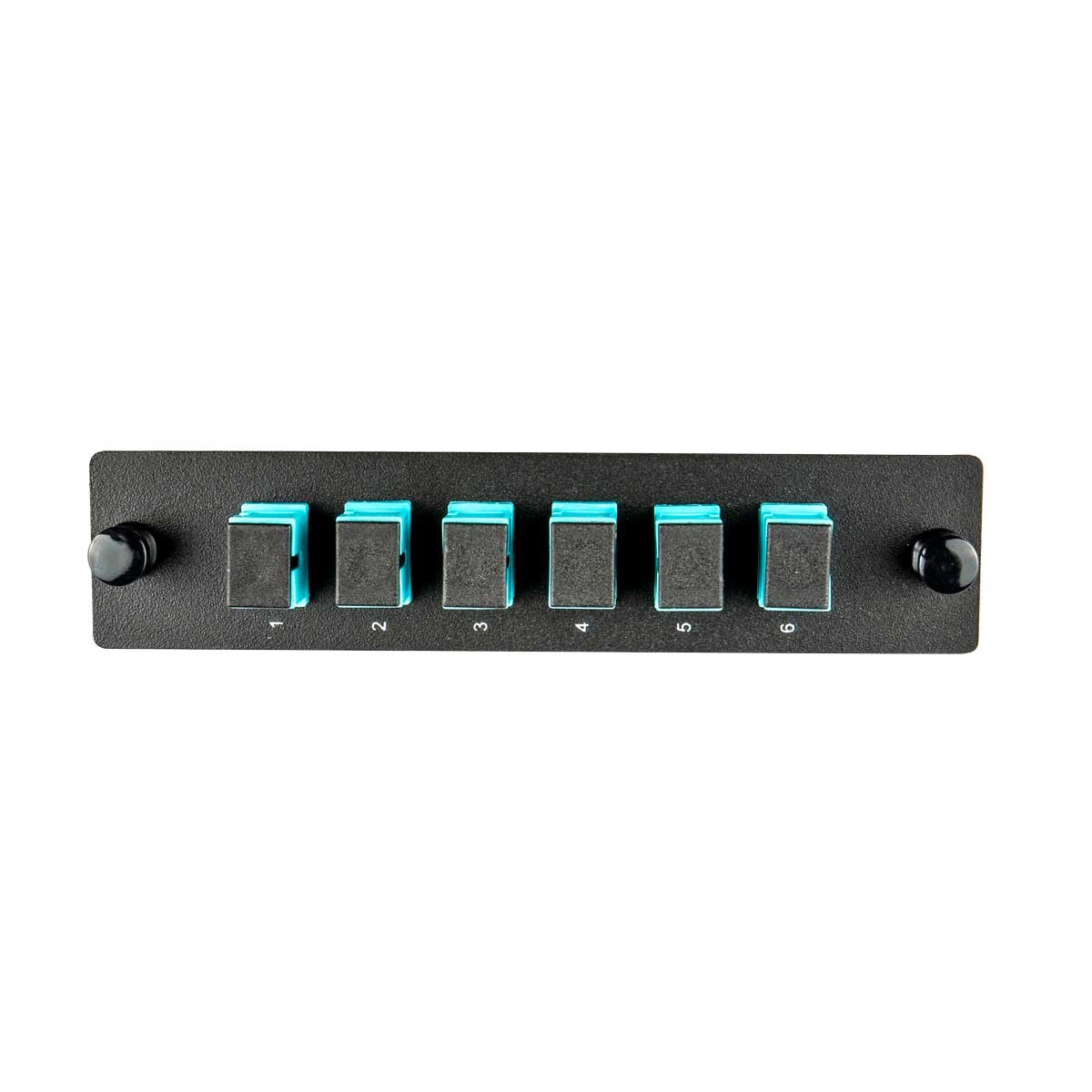

  • Adapter Plate, 06 Fiber, Simplex, SC/UPC, 50 µm OM3-4, Aqua

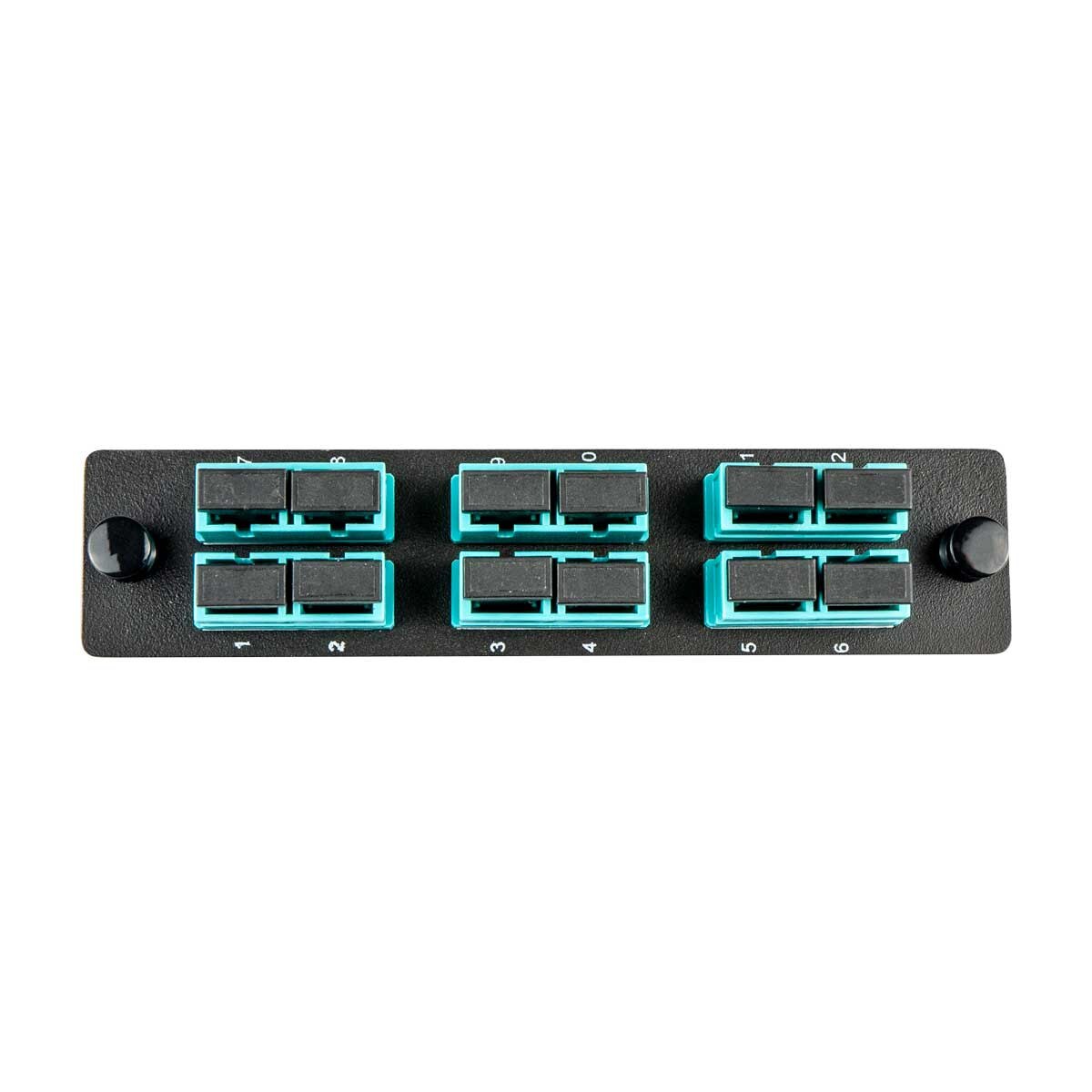

  • Adapter Plate, 12 Fiber, Duplex, SC/UPC, 50 µm OM3-4, Aqua
  • Adapter Plate, 24 Fiber, Quad, LC/UPC, 50 µm OM3-4, Aqua

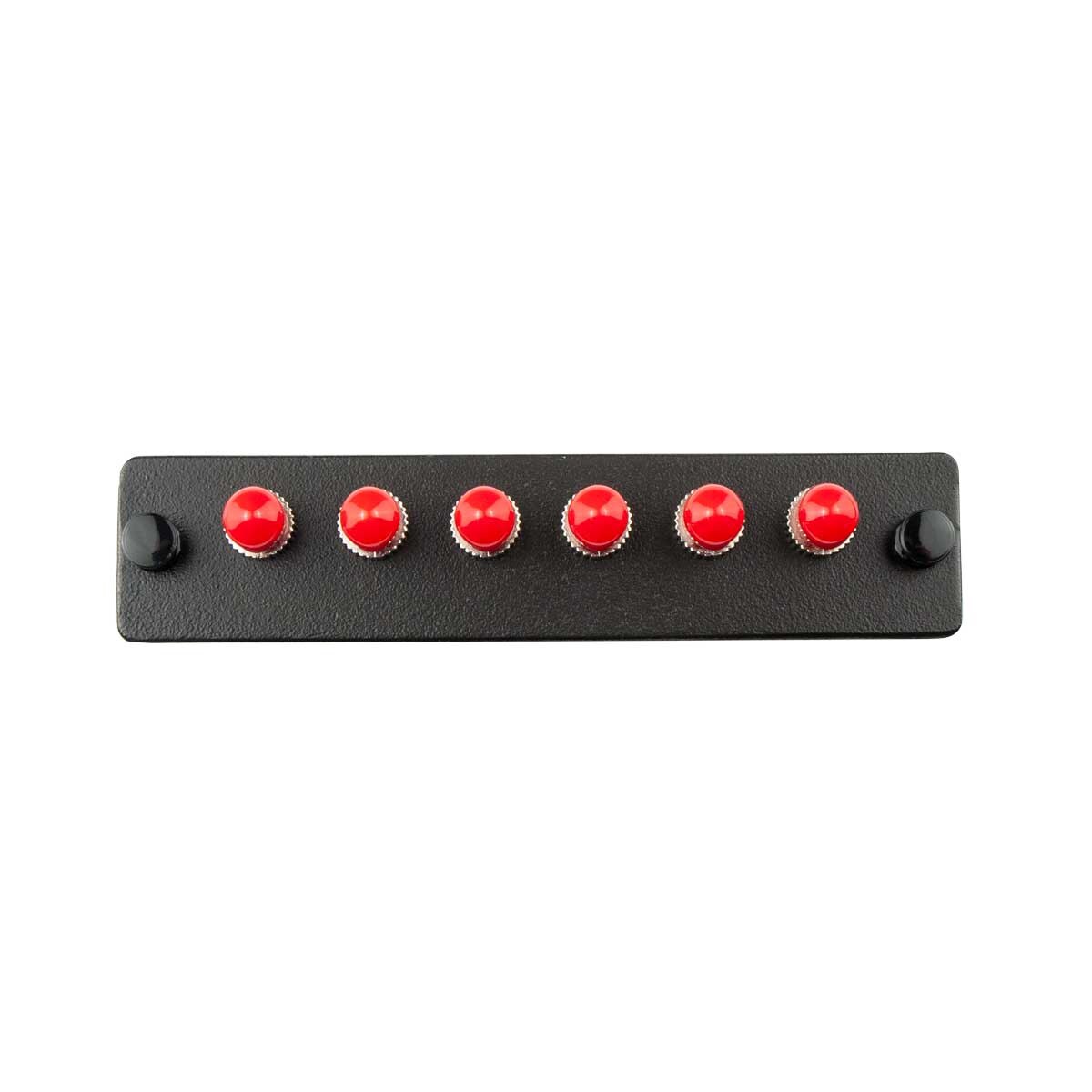

  • Adapter Plate, 6 Fiber, Simplex, ST/UPC, 50 µm OM3-4 or 9 µm OS2

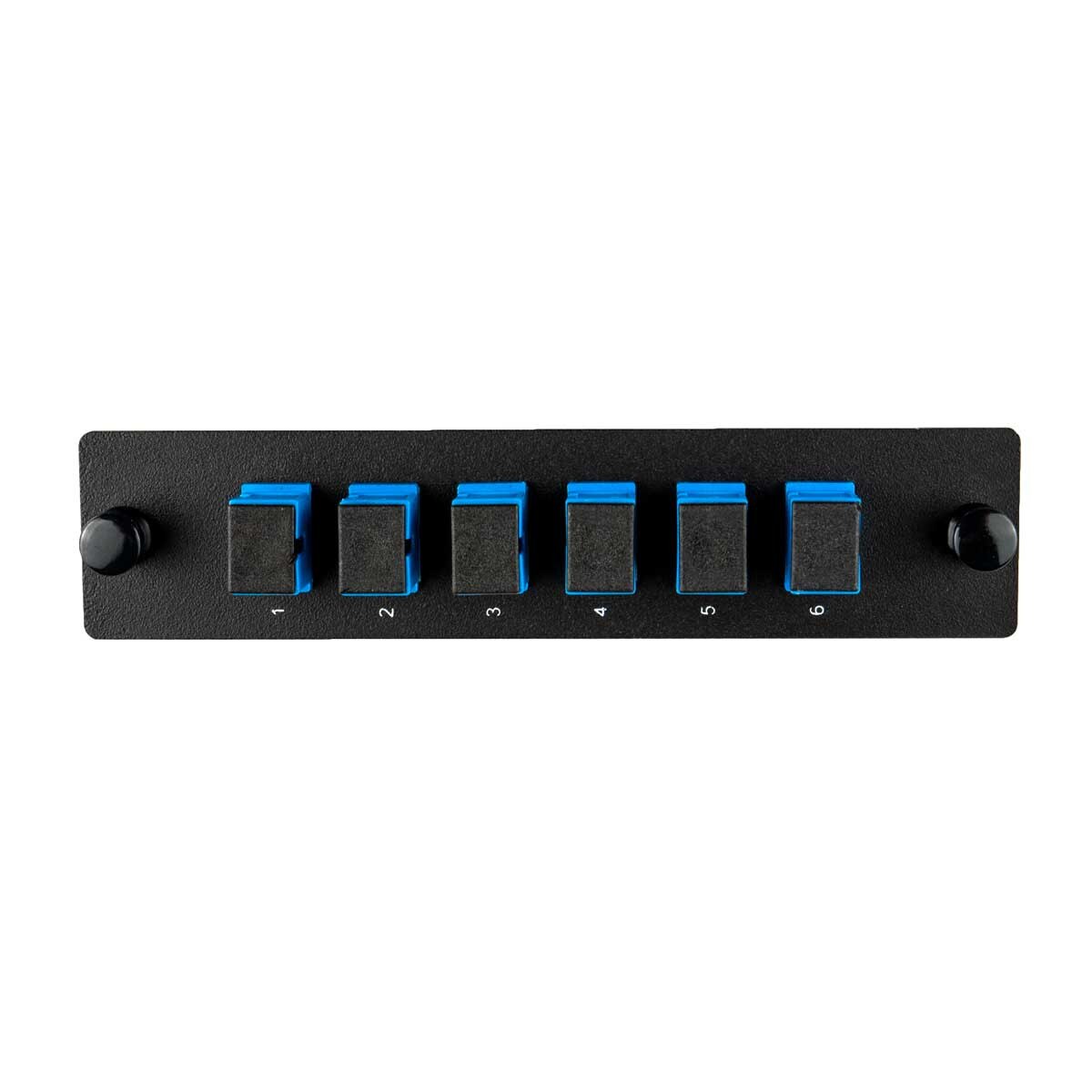

  • Adapter Plate, 06 Fiber, Simplex, SC/UPC, 9 µm OS2, Blue

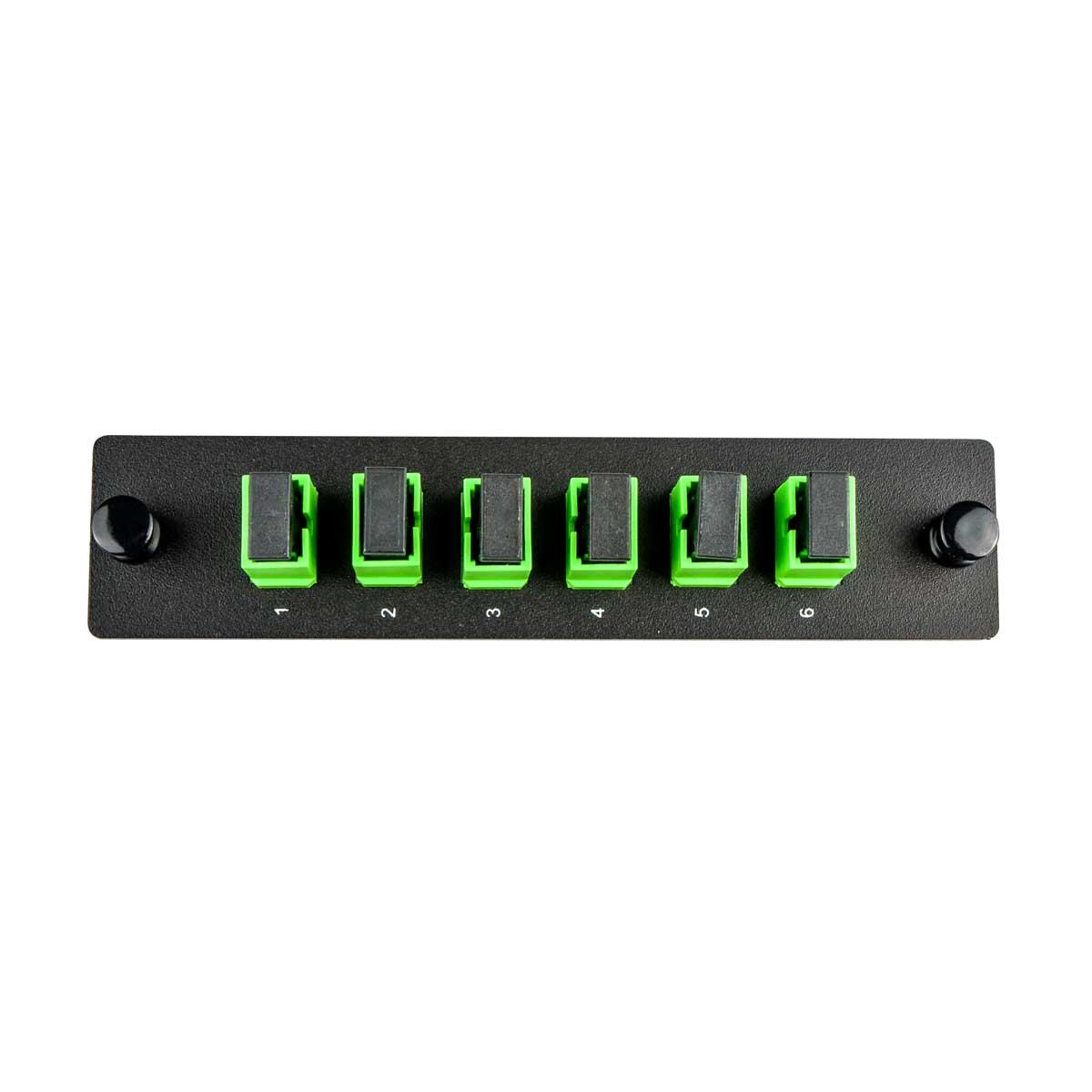

  • Adapter Plate, 06 Fiber, Simplex, SC/APC, 9 µm OS2, Green

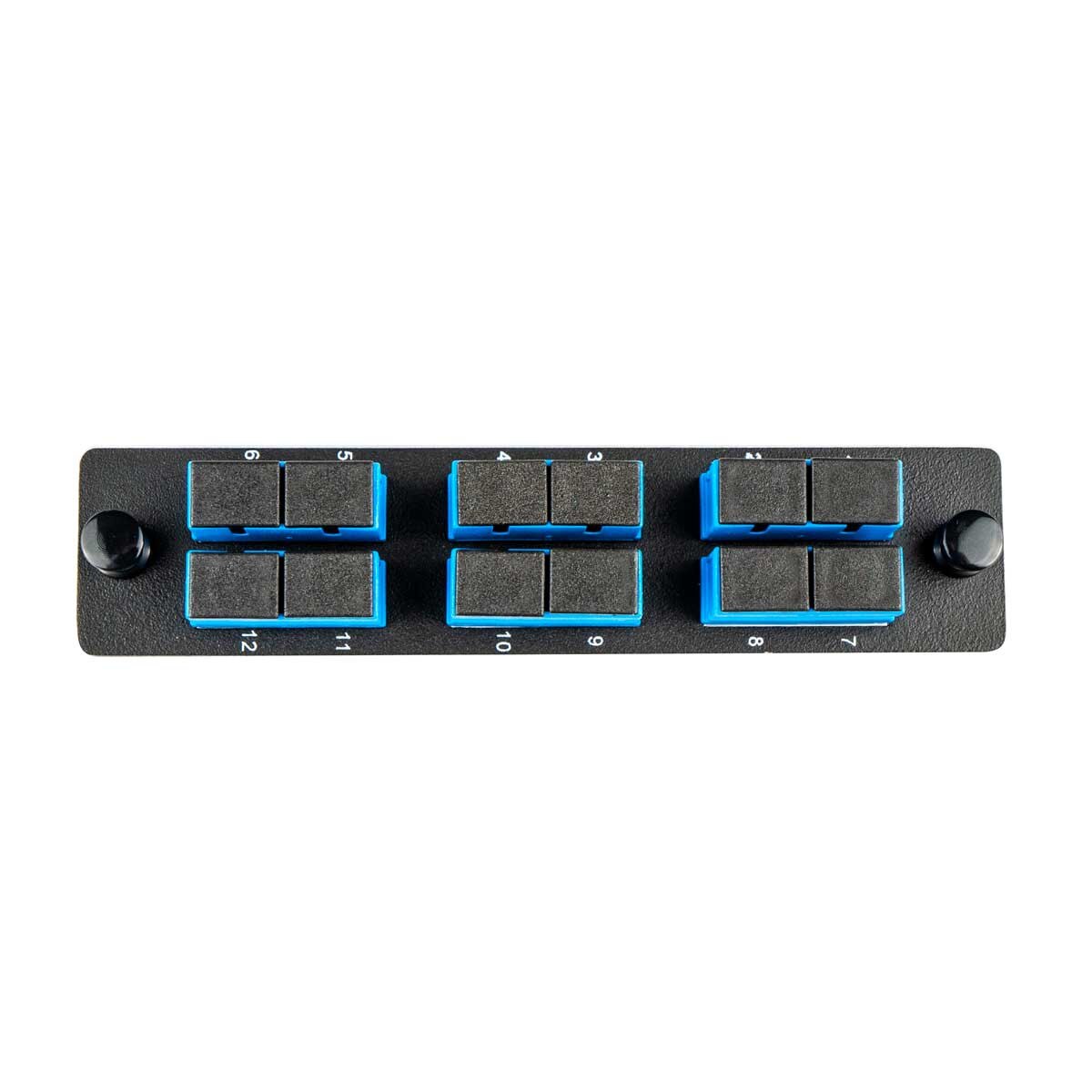

  • Adapter Plate, 12 Fiber, Duplex, SC/UPC, 9 µm OS2, Blue

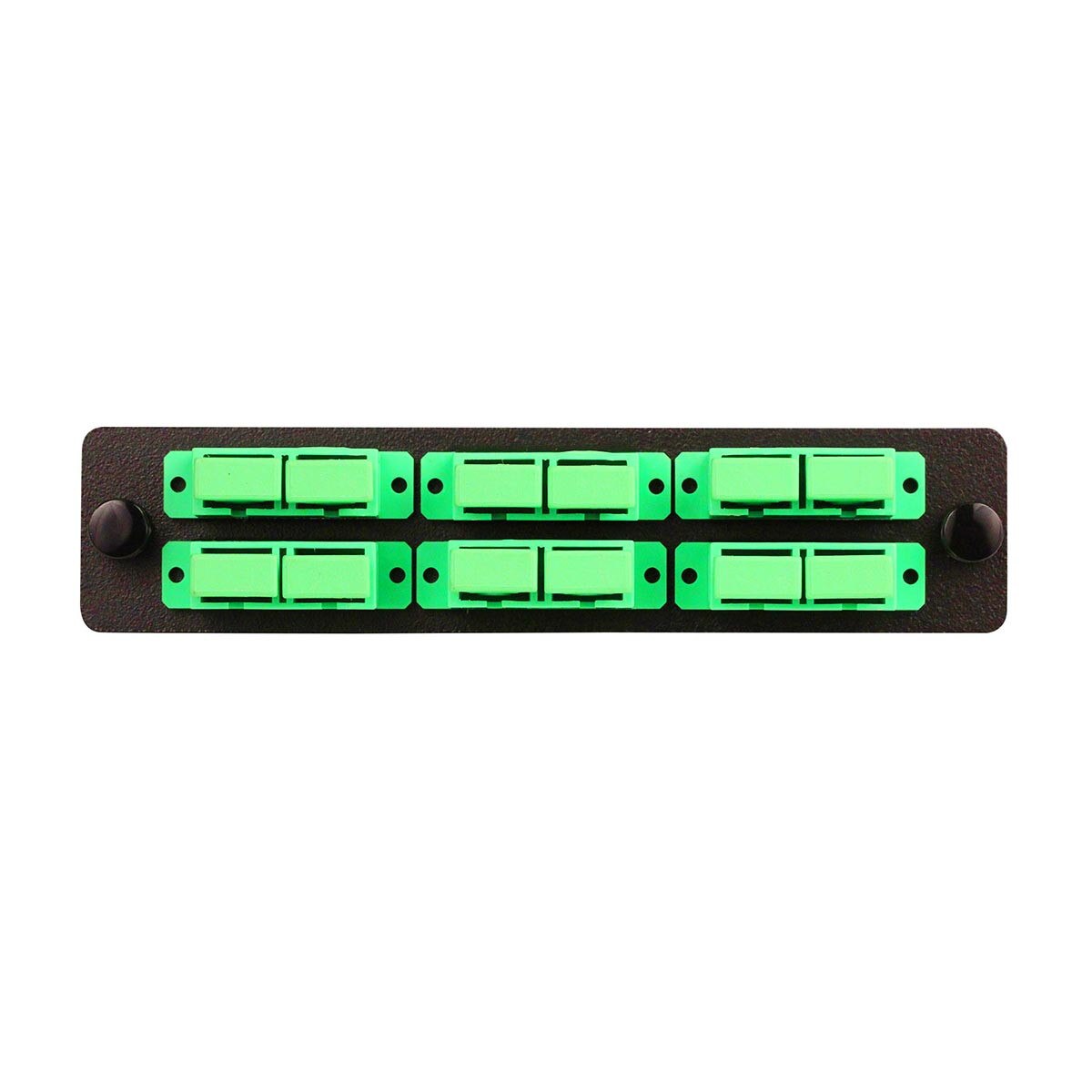

  • Adapter Plate, 12 Fiber, Duplex, SC/APC, 9 µm OS2, Green

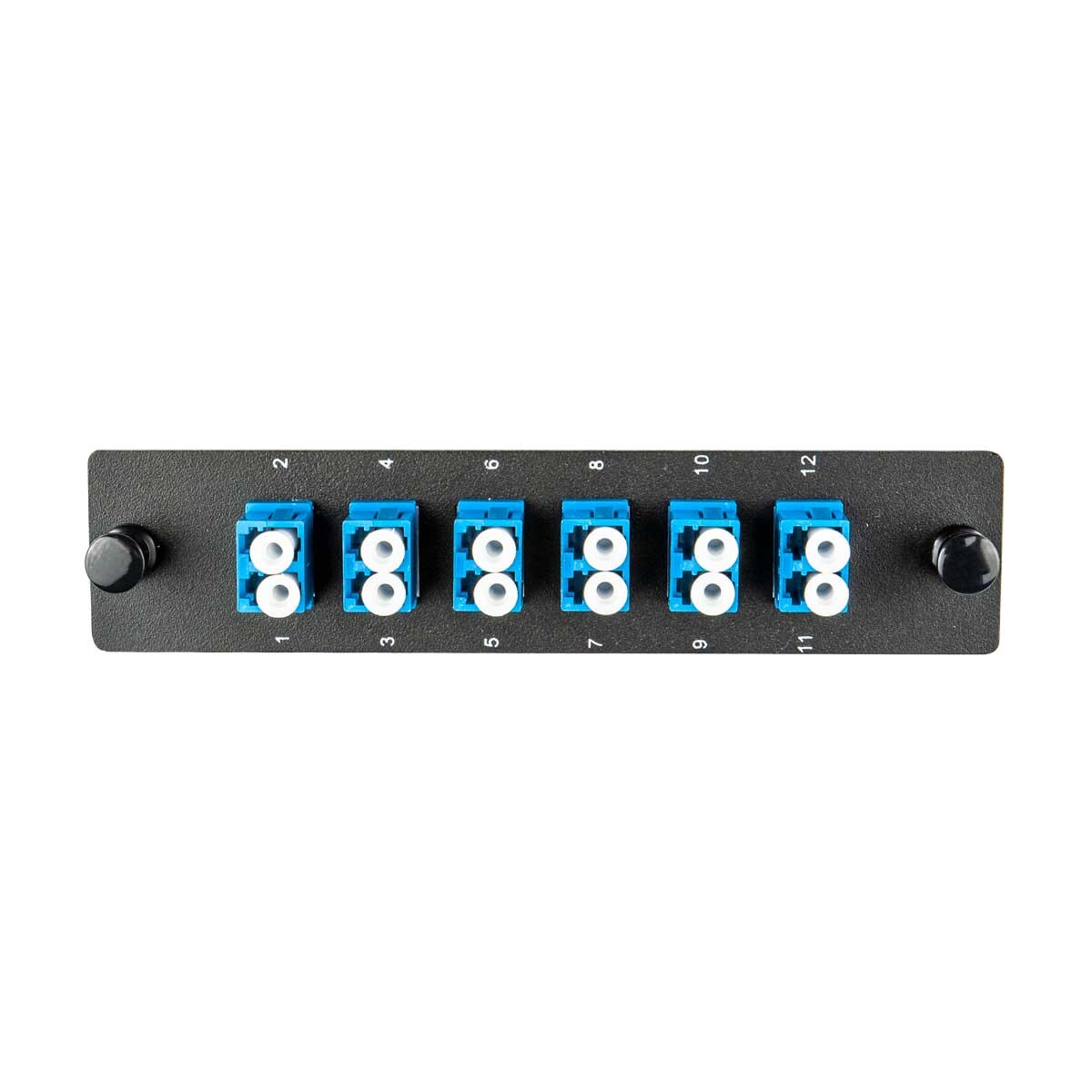

  • Adapter Plate, 12 Fiber, Duplex, LC/UPC, 9 µm OS2, Blue

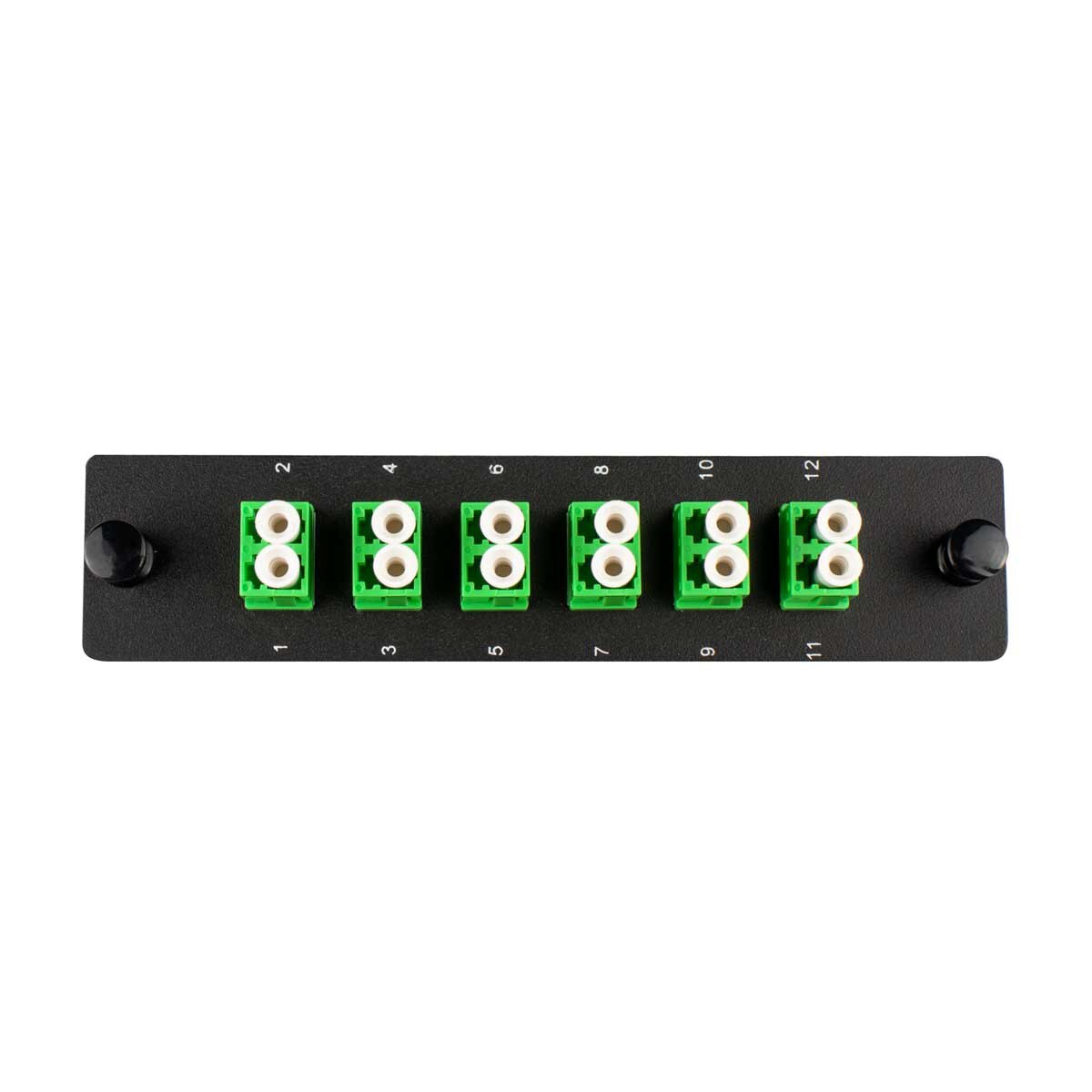

  • Adapter Plate, 12 Fiber, Duplex, LC/APC, 9 µm OS2, Green

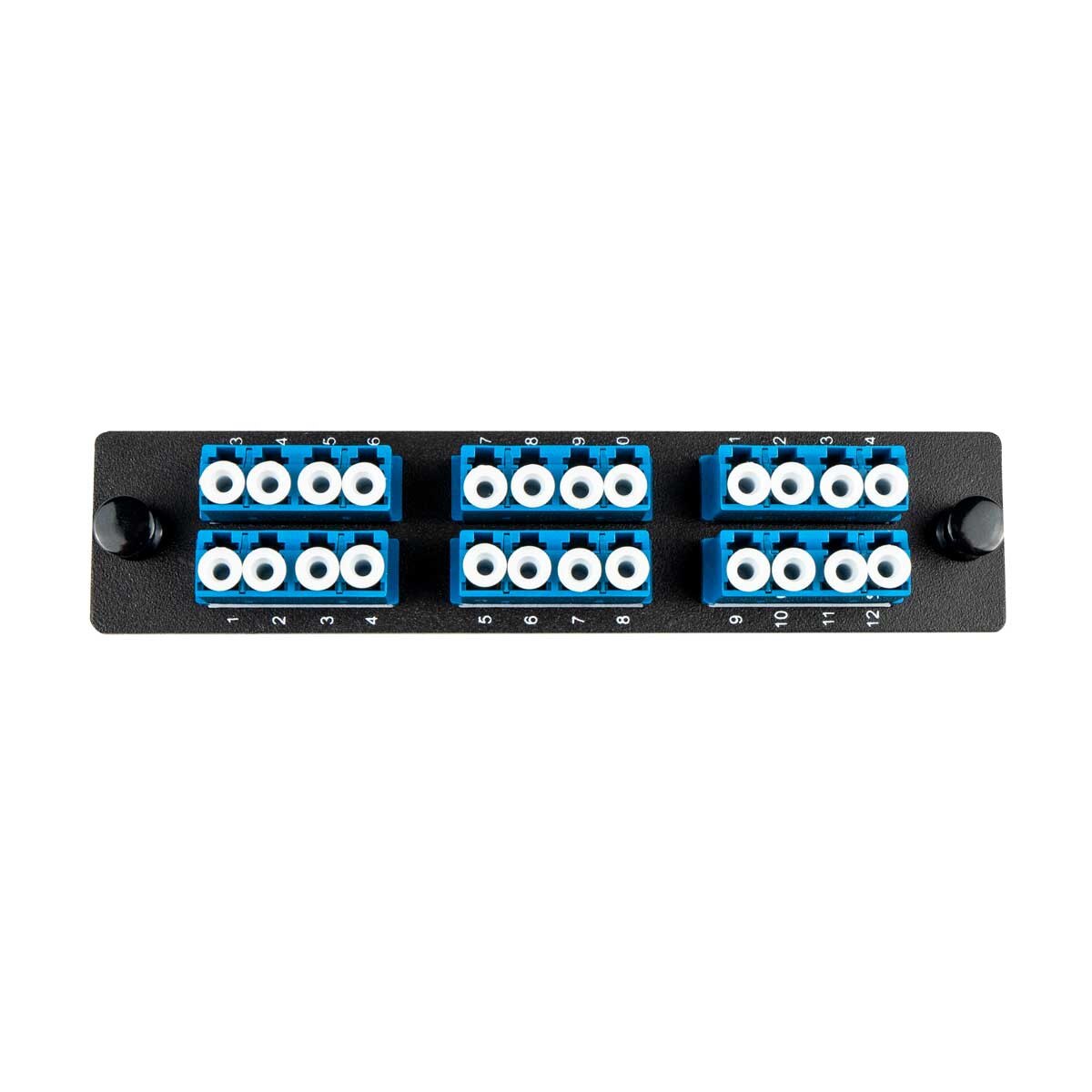

  • Adapter Plate, 24 Fiber, Quad, LC/UPC, 9 µm OS2, Blue

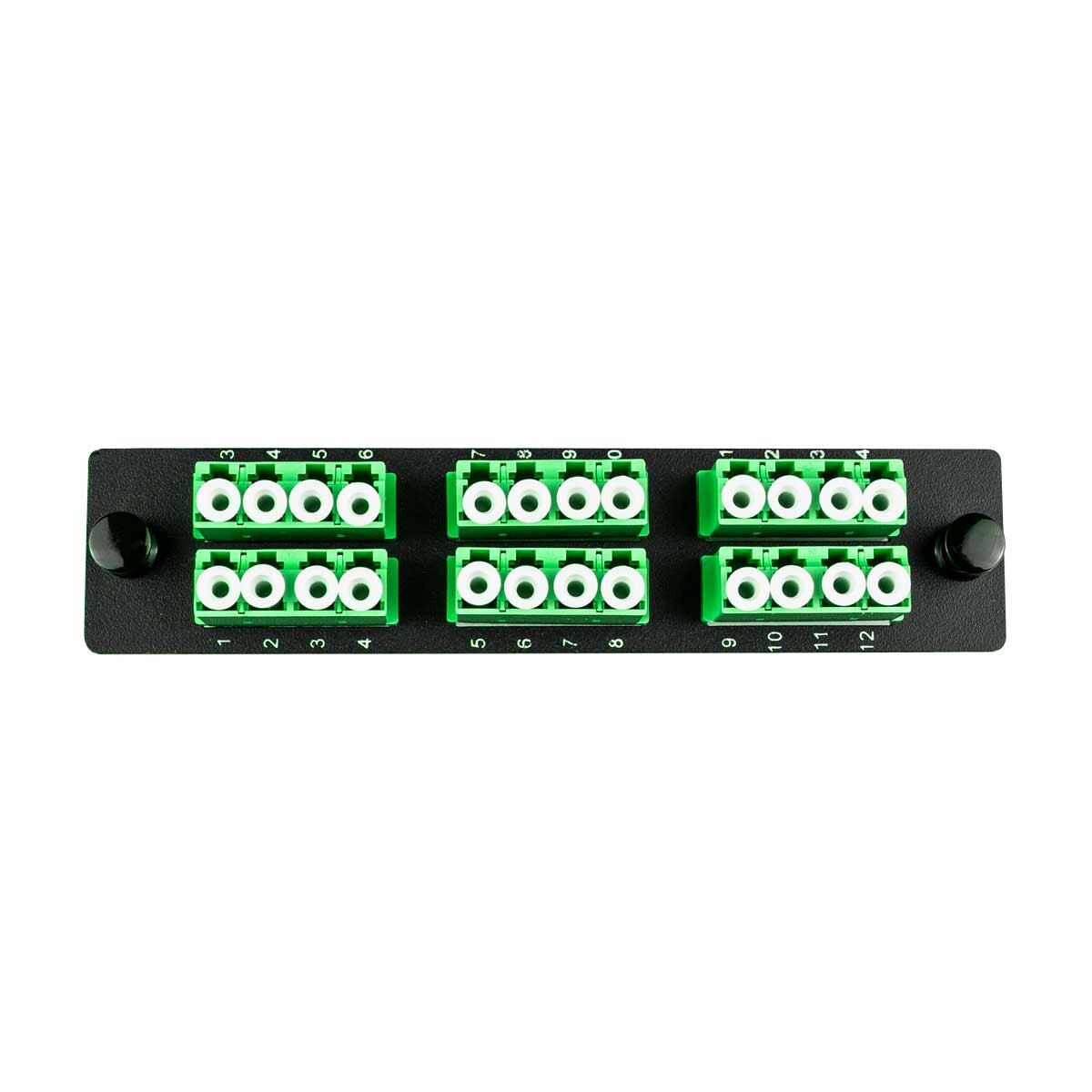

  • Adapter Plate, 24 Fiber, Quad, LC/APC, 9 µm OS2, Green

LGX® Adapter Plates

(0)No Reviews yet
SKU: LGX Adapter Plates
MANUFACTURER: Cleerline
SALE UNITS: Each
Back

Cleerline™ adapter plates are designed to provide a wide variety of adapter configurations in any LGX-118 compatible panel. These adapter plates have a simple push-in design to fit Rack Mount and Wall Mount enclosures, making it easy to add additional ports as needed. A large selection of options are available, including high-density adapters.

FEATURES AND BENEFITS:
• LGX-118 Compatible (1.15” x 5.10”)
• For Use in Any LGX Compatible Wall or Rack Mount Enclosure
• CCH Compatible to LGX-118 Conversion Plate
• Zirconia ceramic sleeve
• Wide variety of Adapter options

SPECIFICATIONS:
• Adapters: 6-24
• Connector Types: LC, SC, ST
• Adapter Configuration: Single, Duplex, Quad
• Fiber Types: single-mode OS1 and OS2, multimode OM2, OM3, OM4 (50um)
• Sleeve Material: Zirconia ceramic
• Dimensions: 130mm x 29.20mm
• Distance between pins: 118mm

Specification Sheet
