1G SFP transceiver RJ45, 100m

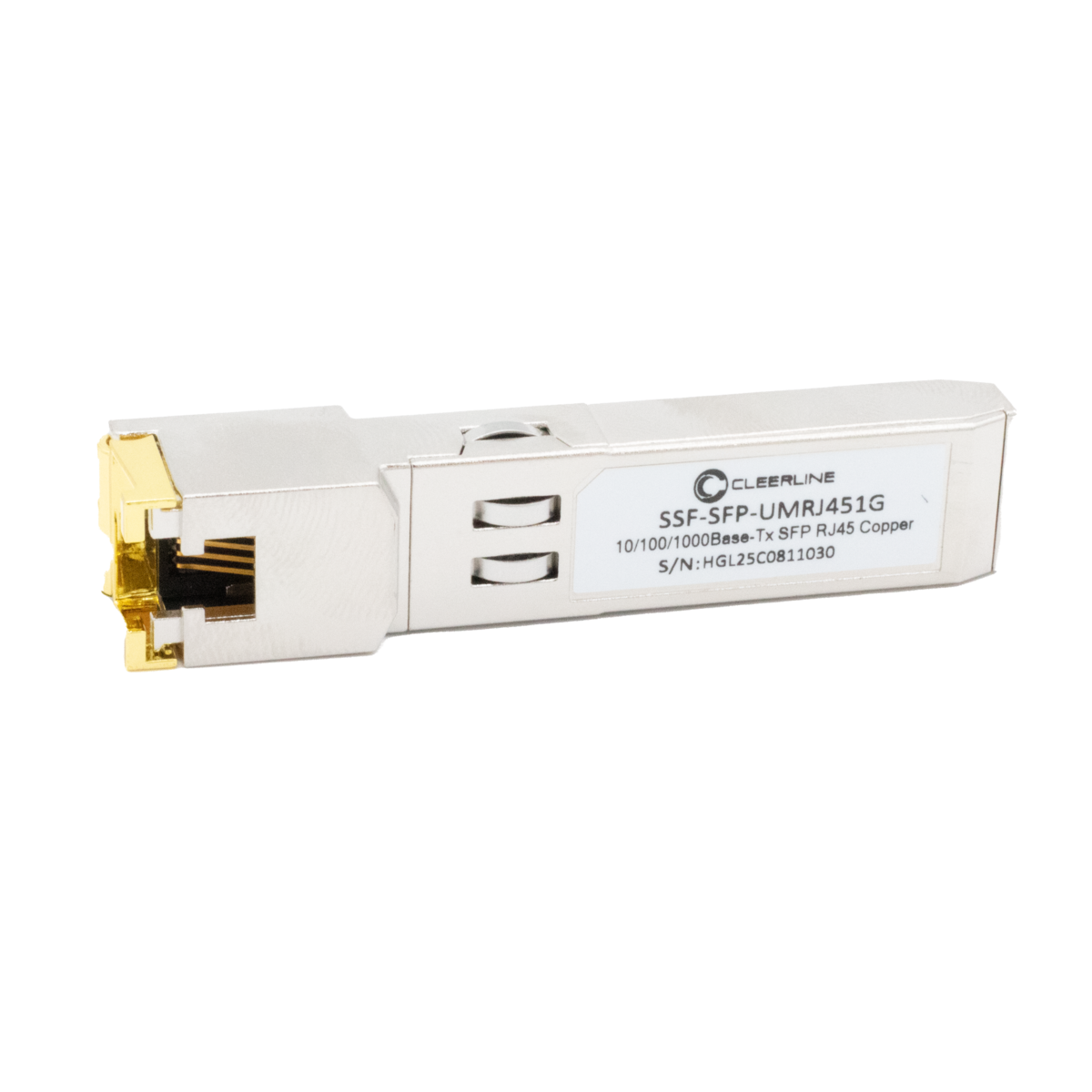

The SSF-SFP-UMRJ451G is a high-performance, cost-effective Copper Small Form-Factor Pluggable (SFP) transceiver designed for Gigabit Ethernet applications. Fully compliant with IEEE 802.3-2002 and IEEE 802.3ab (1000BASE-T) standards, this module enables seamless 1000 Mbps full-duplex data transmission over distances of up to 100 meters.
FEATURES AND BENEFITS:
• Data Rate: 1000 Mbps (1 Gbps)
• Reach: Up to 100 meters over Cat5 UTP cable
• Connector: RJ45 copper interface
• Modulation: 5-level Pulse Amplitude Modulation (PAM-5)
• Cable Utilization: Uses all 4 twisted pairs, 250 Mbps per pair
• Hot-Pluggable: Compatible with standard SFP MSA-compliant ports
• Diagnostics: Provides digital diagnostic monitoring (DDM) via 2-wire CMOS EEPROM protocol (I2C)
• Compliance: IEEE 802.3ab, SFP MSA, RoHS
FEATURES AND BENEFITS:
• Data Rate: 1000 Mbps (1 Gbps)
• Reach: Up to 100 meters over Cat5 UTP cable
• Connector: RJ45 copper interface
• Modulation: 5-level Pulse Amplitude Modulation (PAM-5)
• Cable Utilization: Uses all 4 twisted pairs, 250 Mbps per pair
• Hot-Pluggable: Compatible with standard SFP MSA-compliant ports
• Diagnostics: Provides digital diagnostic monitoring (DDM) via 2-wire CMOS EEPROM protocol (I2C)
• Compliance: IEEE 802.3ab, SFP MSA, RoHS
