SSF Double Jacket Micro Distribution

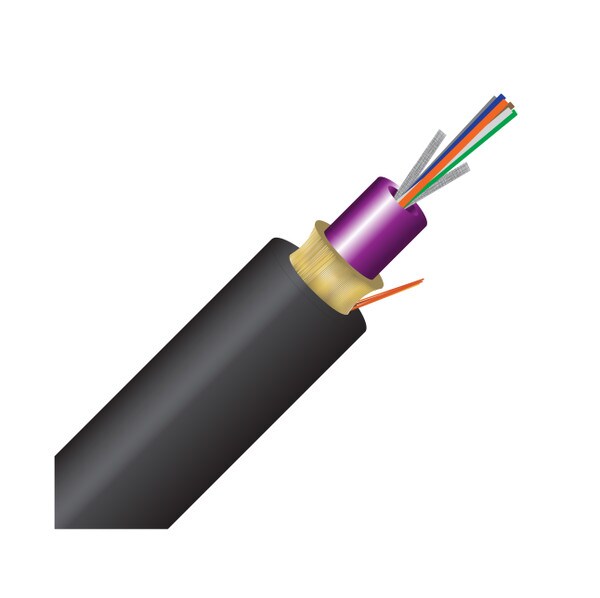

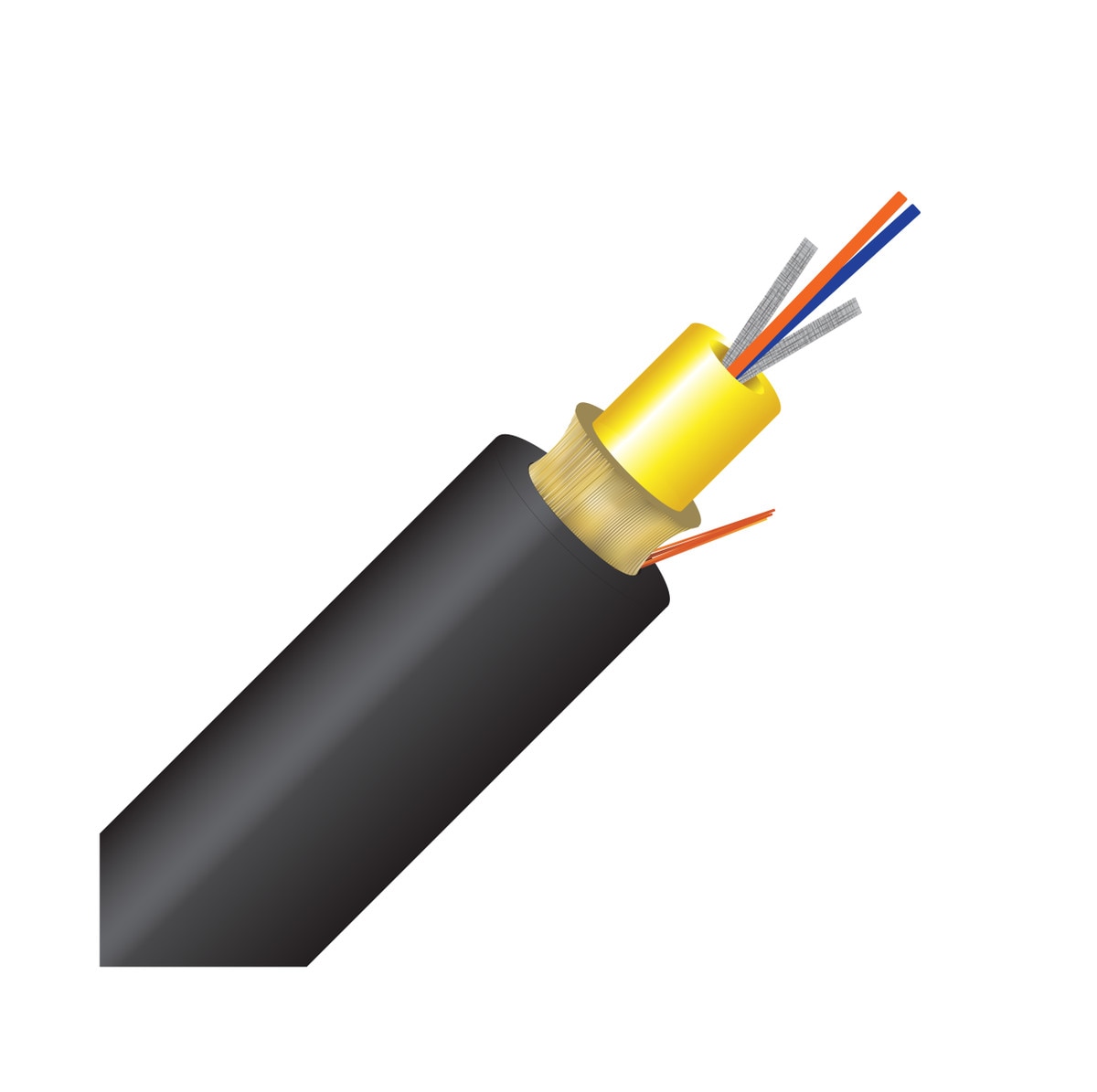

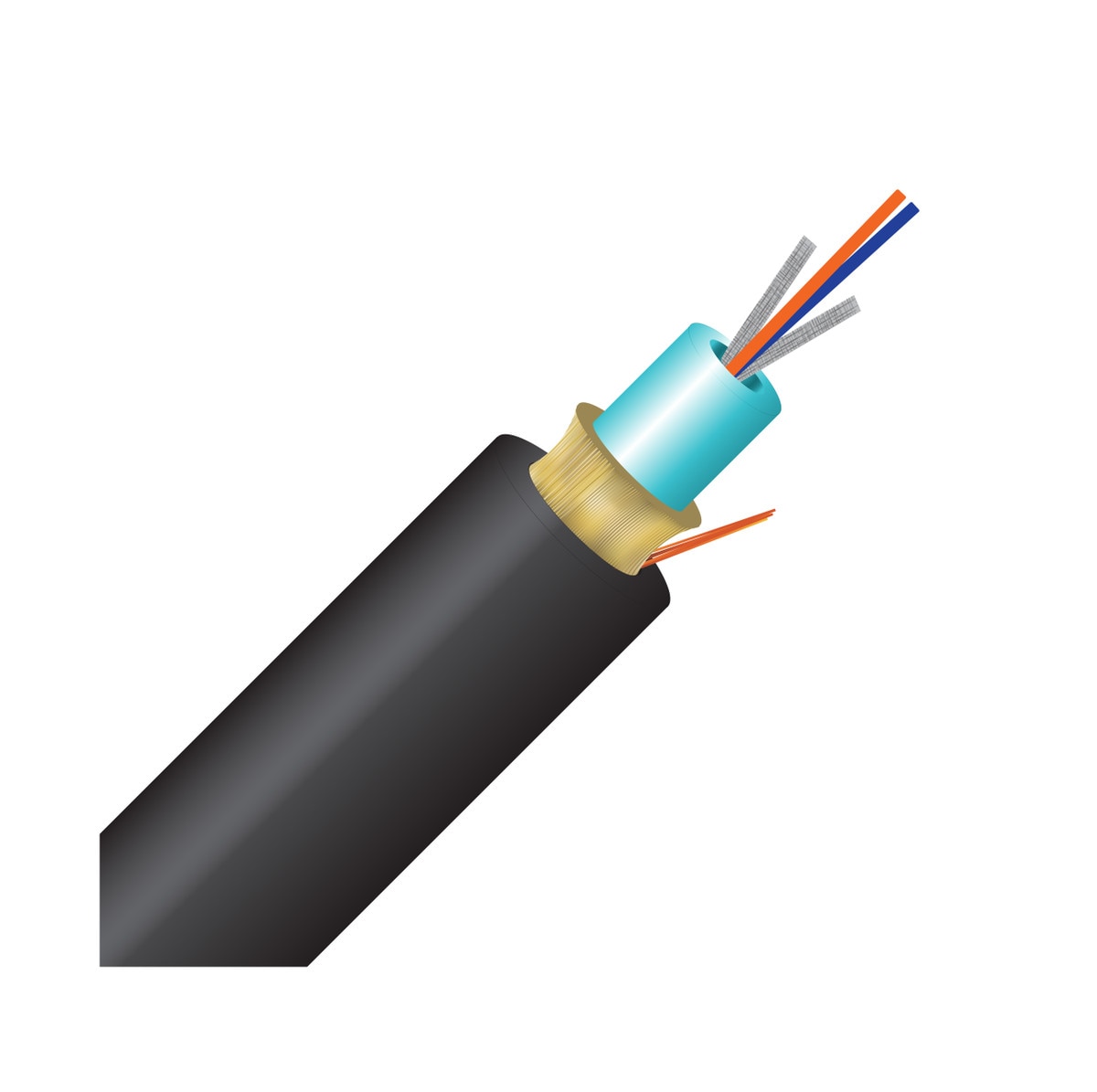

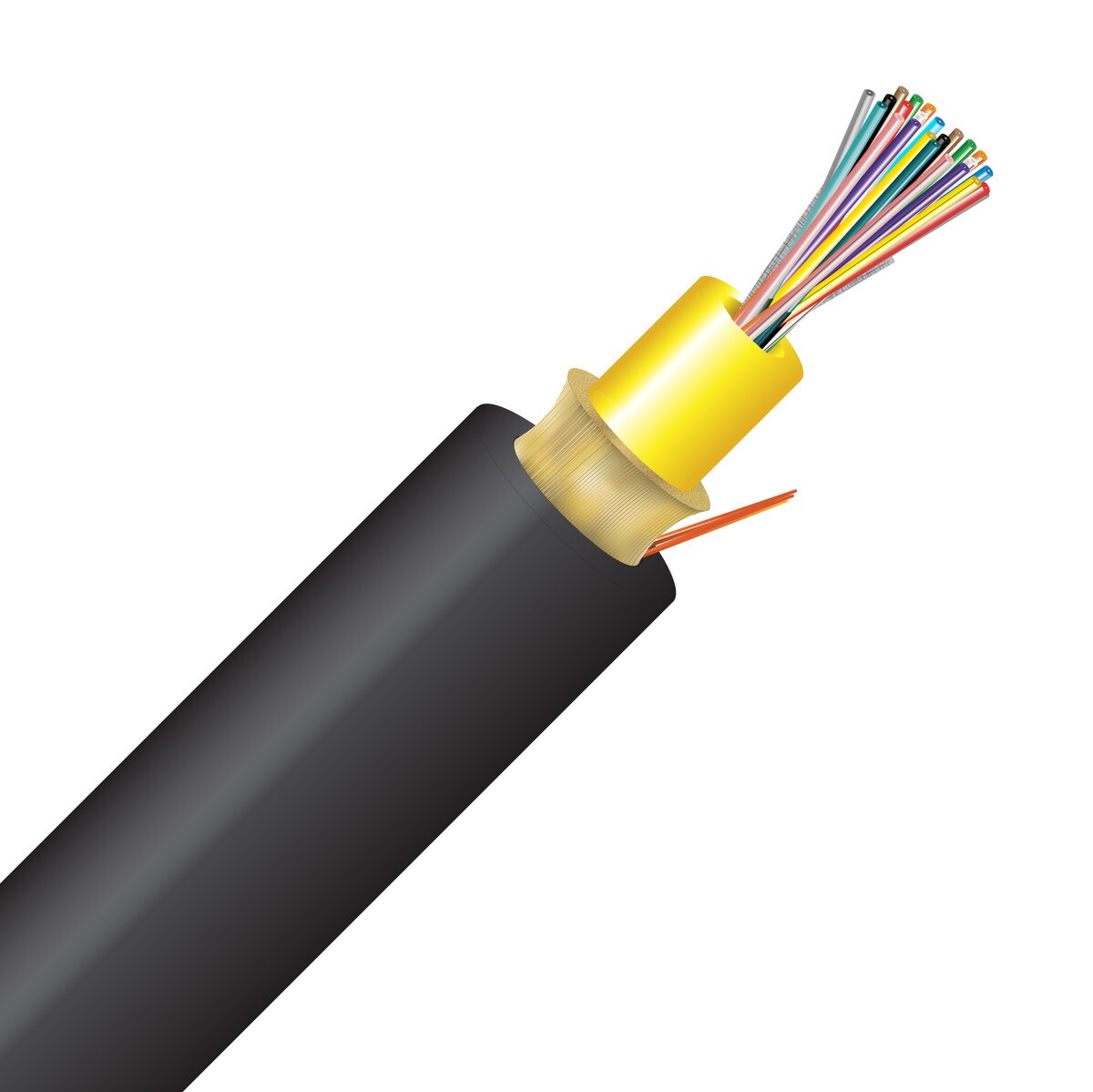

Cleerline SSF™ Double Jacketed Micro Distribution cables feature a 2.5 mm loose tube style subunit within an overall 4.8 mm outer Riser rated PVC jacket, making them ideal for ducts, riser spaces, and tray installations. The SSF™ fiber provides extreme strength and bend longevity, ensuring reliable performance in demanding environments.

Cleerline™ Double Jacket Micro Distribution is compatible with all common connector systems both 9/125 single-mode and 50/125 multimode. Cleerline SSF™ cables boast high mechanical strength and superior fatigue resistance. The integrated SSF™ coating enhances glass protection, while the dielectric construction and 250 µm Soft Peel acrylate improve durability. Compliant with ETL listed type OFNR and ANSI/TIA-568-C.3, these cables meet the highest quality standards, ensuring reliability.

FEATURES AND BENEFITS

• High mechanical strength, superior fatigue (Nd = 30)
• Up to 10,000x the bend longevity of traditional fiber
• Integral SSF™ coating provides glass protection
• Dielectric construction
• Exclusive 250 µm Soft Peel acrylate
• O.D. 4.8 mm
