Simplex Rugged Drop Cable

(0)No Reviews yet
SKU: Simplex Rugged Drop Cable
MANUFACTURER: Cleerline

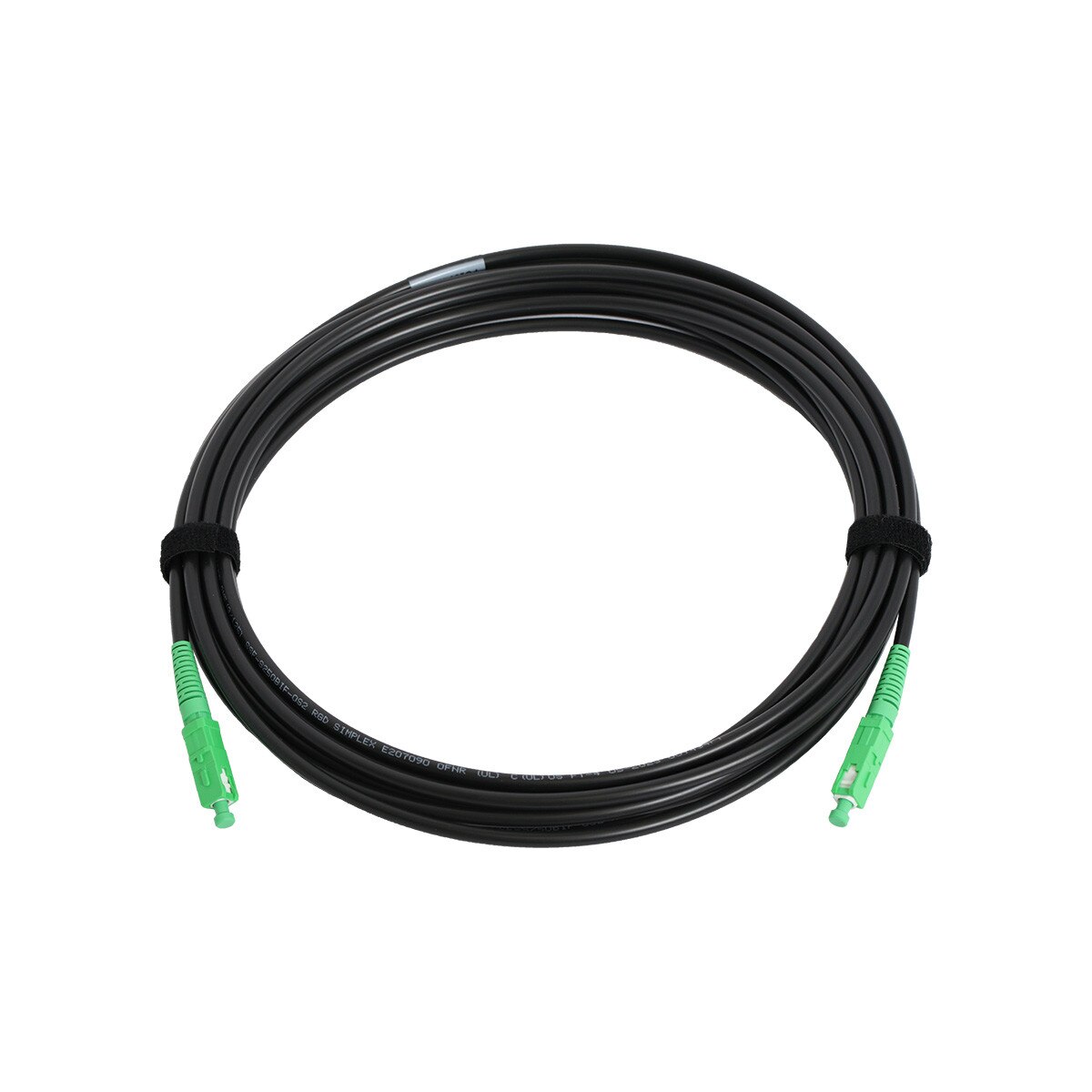

Cleerline Simplex Rugged SSF™ drop cables are composed of a SSF™ tight buffered fiber in an overall 4.8 mm Rugged jacket, is Riser rated indoor/ outdoor, and incorporates Aramid water blocking yarns for strength and protection. SSF™ fiber adds extreme strength and durability at the glass level having up to 10,000x more bend and 2x to 3x times the tensile strength over traditional fibers. Simplex Rugged SSF™ is ideal for installation both indoor and outdoors being designed for staple attachment, can be placed in ducts or indoors in riser spaces and tray installations. Cleerline drop cables utilize Senko™ SC APC Premium grade 4.8mm connectors for reliable fiber mating with unparalleled durability.

FEATURES AND BENEFITS:
• High mechanical strength, superior fatigue (Nd = 30)
• Compatible with common connector systems for 9/125 single mode 900 μm tight buffered SSF™ fiber
• Integral SSF™ coating provides glass protection
• Senko SC APC Premium 4.8 mm connectors
• Exclusive 250 μm Soft Peel acrylate

APPLICATIONS:
• ISP delivery applications
• Telecommunications network
• High bandwidth networks
• FTTH (Fiber to the Home)

Specification Sheet
